Release Notes - MIKE OPERATIONS 2024.3¶
Release date¶
August 2024
Welcome¶
Welcome to MIKE OPERATIONS 2024.3
In this Release Note, you will find information about new features of MIKE OPERATIONS and what you need to know to install and get started with Release 2024.3.
MIKE OPERATIONS is a software product designed for data management and model-based forecast services and for online operational control of river systems, water collection systems and water distribution systems. MIKE OPERATIONS empowers you to build real-time systems by offering flexible tools that help you deal with complexities such as acquiring and combining online data sources in preparation for real-time modelling.
MIKE OPERATIONS is a product consolidation of software tools developed and applied in projects since 2012. Hence, although MIKE OPERATIONS is a relatively new member of the MIKE product family it builds on proven software products that already serve many customers worldwide.
Note
Note that model adapters of MIKE OPERATIONS support the official MIKE 2024 Update 1 release only. This means that previous and future releases of MIKE engines are NOT supported.
System requirements¶
| Operating systems | |
|---|---|
| Fully supported Windows operating systems (*) | |
| Non-supported but partially tested operating systems (**) |
(*) Fully supported operating systems are systems that have been tested in accordance with MIKE's Quality Assurance procedures and where warranty and software maintenance agreement conditions apply.
(**) Non-supported but partially tested operating systems are systems, which are not officially supported by the MIKE software products. These operating systems have only undergone very limited testing for the purpose of MIKE software, but the software and key features are likely to work. Installation of MIKE software on a non-supported operating system is done so at the user's own risk. The MIKE software warranty and software maintenance agreement conditions do not apply for unsupported operating systems and DHI is under no obligation to provide assistance or troubleshooting for cases where the software is being used on a non-supported operating system.
Please note that when running a fully supported operating system as a 'guest operating system' on a virtualization platform, it is automatically downgraded to a non-supported operating system under the conditions provided above.
| Minimum hardware/software requirements | |
|---|---|
| Processor | Compatible with x64 instruction set, 2.2 GHz or higher |
| Memory (RAM) | 16 GB or higher * |
| Storage | 64 GB or higher * |
| Display | Resolution 1024 x 720 (High-Definition) or higher, 24-bit color (true color) |
| Graphics adapter | 64 MB RAM (256 MB RAM or higher recommended), 32-bit true color |
| Software requirements | Microsoft .NET Framework 4.7.2 or higher |
(*) The actual required amount of memory and disk space depend on the usage (application, model setup, size of data files etc.)
PostgreSQL¶
With this release, the following combinations of PostgreSQL and PostGIS are supported.
| PostgreSQL | PostGIS |
|---|---|
| PostgreSQL 12 | PostGIS 3.0.* |
| PostgreSQL 13 | PostGIS 3.1.* |
| PostgreSQL 13 | PostGIS 3.2.* |
| PostgreSQL 14 | PostGIS 3.1.* |
| PostgreSQL 14 | PostGIS 3.2.* |
| PostgreSQL 14 | PostGIS 3.3.* |
| PostgreSQL 15 | PostGIS 3.3.* |
| PostgreSQL 15 | PostGIS 3.4.* |
| PostgreSQL 16 | PostGIS 3.4.* |
Read more about database version support on DHI Developers
Installation¶
To install MIKE OPERATIONS, please go to the MIKE OPERATIONS product folder and execute the setup.exe file from the downloaded, un-zipped installation files.
Before you press the 'Install' button, we recommend that you read the note describing how to install MIKE OPERATIONS - this is available here.
License file and dongle¶
To use MIKE OPERATIONS in licensed mode, please refer to the DHI License Manager Release Notes (License Manager Release Notes).
Product invocation¶
Launch MIKE OPERATIONS from the Windows Start menu.
Support¶
For general support, please refer to our FAQ or the MIKE OPERATIONS Online Help.
If you experience any difficulties, or if you have questions, please contact our Customer Care team at mike@dhigroup.com.
You can also contact your local Customer Care team for support in your local language. A list can be found here.
Breaking Changes¶
Breaking changes are changes made to functionality that requires user action as part of an upgrade to ensure that specific functionality will work after the upgrade.
If any breaking changes has been made to a release, the breaking changes will be described in the release notes.
MIKE1D and MIKE+ adapter models¶
As a result of fixing issues with identifying and reading output time series on links, models registered with the MIKE1D or the MIKE+ adapters, should be reregistered in order to parse links correctly.
In case links output is not used, there is no need for doing a re-registration of the models.
New features¶
Every new release of MIKE OPERATIONS consists of new modules, new features and/or corrections to problems or significant inconsistencies discovered in previous releases.
Please find below, a brief descriptions of the most significant news.
The MIKE OPERATIONS 2024.3 release is an public release based on version 2024 Update 1 of MIKE Zero, MIKE+ and FEFLOW (8.2).
The feature list of MIKE OPERATIONS 2024.3 includes features included in the release of MIKE OPERATIONS 2024.2, and features added since this release.
| Module | Description |
|---|---|
| Time Series | Optimising performance for Query Time series tool (using MIKE Cloud Mesh Provider) |
| MODFLOW Adapter | New MODFLOW Adapter for MIKE Mine. |
| Security | Password Encryption has been upgraded to use Aes/AesCryptoServiceProvider encryption. |
| Revenera (3rd party) integration | Option to log events to capture application startup, running of tools, exception or error, adapater simulation in switch off mode. Logging is NOT enabled by default. |
| Documentation | Updated documentation for tools and tool sequence. |
| Find Data- new Ribbon item created | Results in helping to search for data in MIKE OPERATIONS. |
| Start Screen | Redirection of the start screen for MIKE Workbench |
| Security Upgrades | Upgrade 3rd party components (including NHibernate) to ensure that critical security fixes are included in the release. |
| Time series Import Wizard | Provides a import wizard to import time series data from multiple files from disk. |
| MIKE+ Adapater | Enhacement to MIKE+ adapter feature allowing configuration of new scenario from MIKE HYDRO River and MIKE 11 template. |
Core¶
Find Data¶
New Ribbon item for finding entities in providers is implemented.
The user can enter a string or a text, select the data provider to search, as shown below.
Once the search completes, the results corresponding to the search will be listed. Double clicking a result will take to the exact path in the explorer of the data provider.
Time Series¶
Time Series Import Wizard¶
Time Series Import Wizard allows importing time series files from disk into the database using the Time Series Import tool.

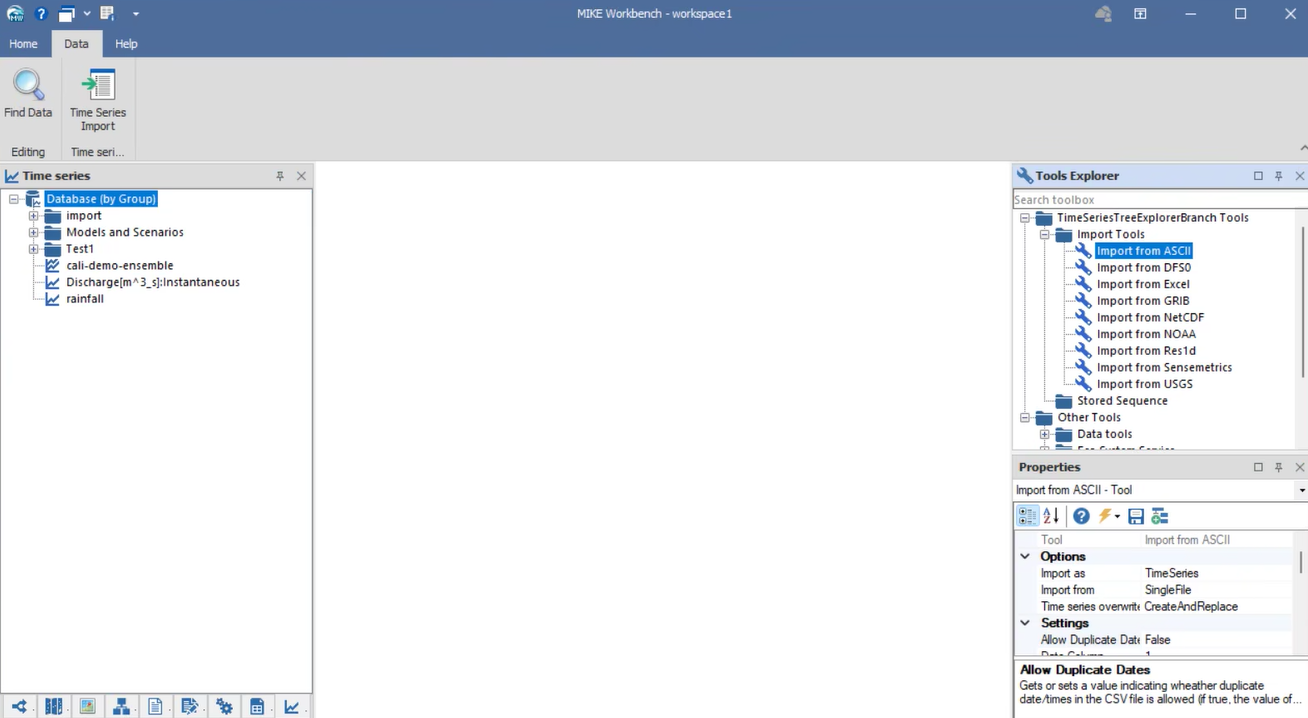

The Time Series Import Wizard is located in the Data ribbon page as shown below.

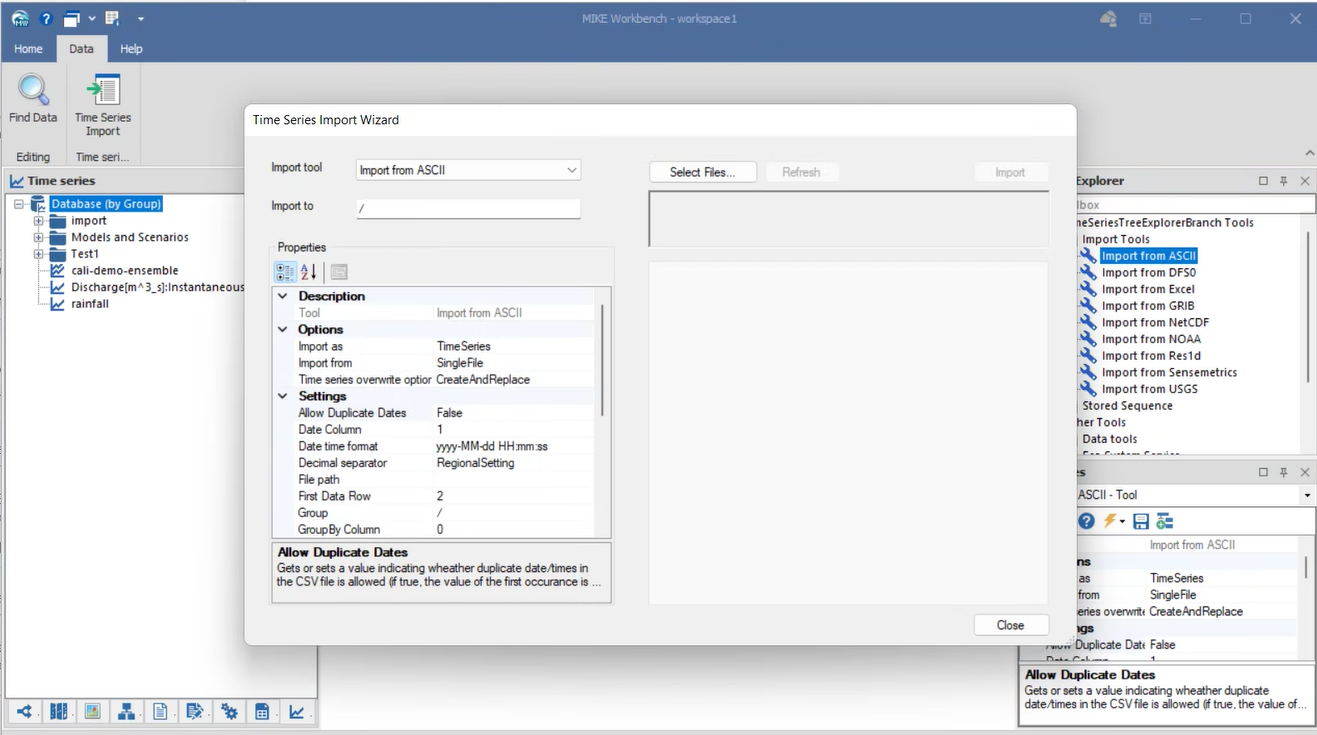

Selecting Time Series Import from the Data section will show the Wizard.
To load the files, click on the Select Files button and chose the file or files that needs importing.
Note that for every file, a new tab will be shown and more than one file, tabs for respective file will be shown as shown below.
The Refresh button will parse the files using the property values specified in Properties and show the results as parsed according to the properties specified.
Clicking on the Import button will import the data into the path specified in the Import to field.
For detailed explanation on TimeSeries Import Wizard, refer to the user documentation.
Model Adapter¶
New MODFLOW Adapter¶
A new model adapter is introduced with MIKE OPERATIONS 2024.3 that allows working with the MODFLOW modular hydrologic model.

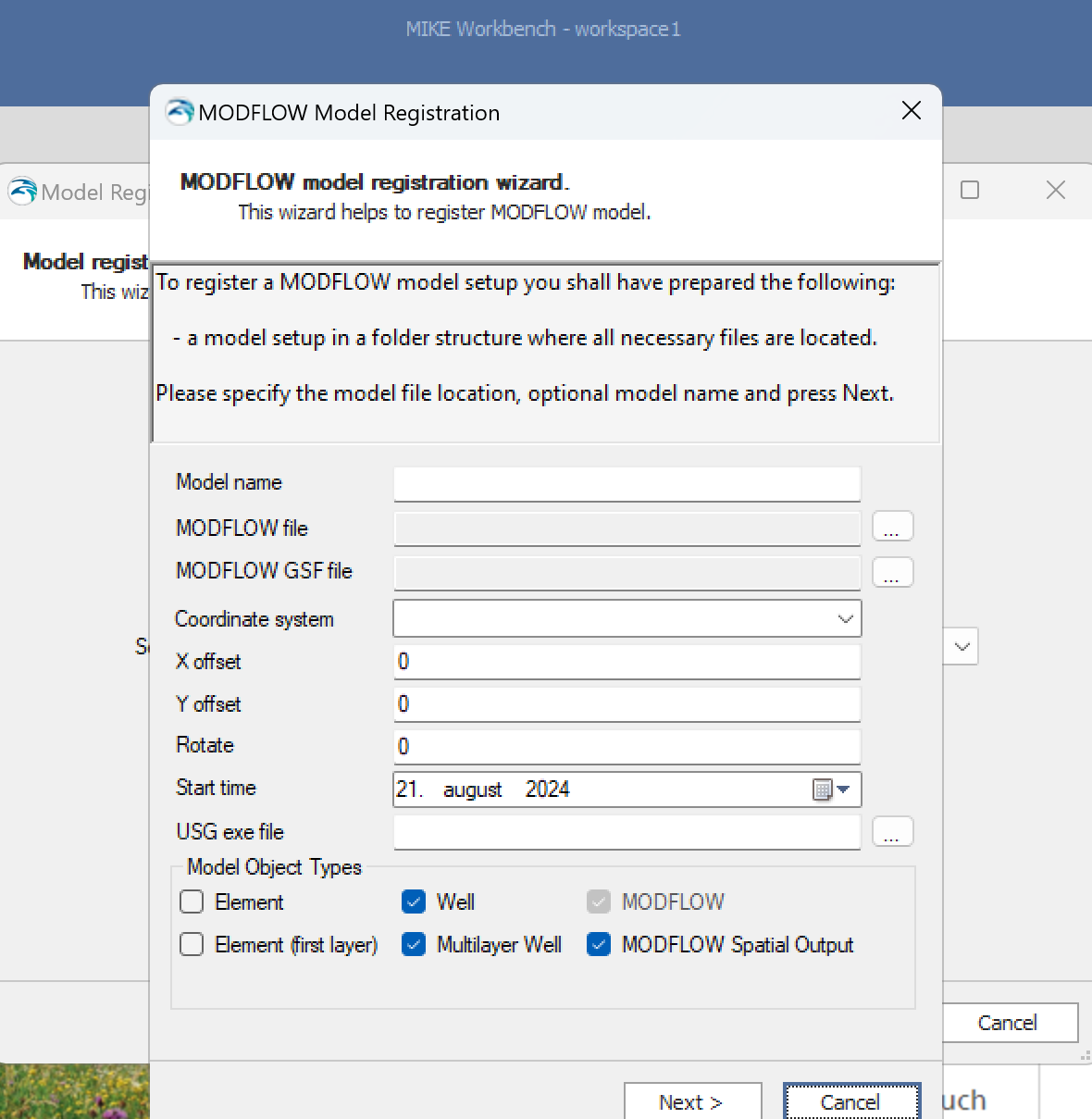

When registering a model using the Scenario Manager, a new entry for the MODFLOW adapter named MODFLOW USG will appear. Selecting this option will provide the user interface to register.
For a detailed explanation on MODFLOW adapter registration, refer to the user documentation.
Fixed issues (2024.3)¶
| Module/type | Error/Inconvenience fixed |
|---|---|
| COR - Core | Delete the current squence and adding a new tool to sequence, shell crashes. |
| OPR - Operation Manager | Closure of spredsheet extension in Operations tree. |
| COR - Core | Cloud engine execution to use 2024 update 1 license for all adapters. |
| TIM - TimeSeries | Updating the varibles in timeseries list to show both Pressure units. |
| Job - Job Manager | Failed running jobs as DSSLease was identified to be invalid. |
| SCM - Scenario Manager | MIKE+ Adapter unable to find Weir. |
| SCM - Scenario Manager | MIKE+ Adapter does not recognise output time series at structures. |
| COR - Core | Losing the feature configuration setting when editing the configuration and without saving the change for a station name. |
