Installation Guide

MIKE OPERATIONS Installation Guide for Release 2024.1

Introduction

This installation guide covers the installation of MIKE OPERATIONS and related Modules (MIKE Workbench, Database Manager Utility, MIKE OPERATIONS Desktop) and required 3rd party software.

MIKE OPERATIONS can be deployed in different ways – ranging from a personal installation to a corporate installation.

1. Personal installation, which allows users to work in a network independent mode on their desktop. This requires the installation of a database on the local computer.
2. Corporate installation, which allows for an office to have multiple installations (clients) all working against a central database.
3. Web installation, which allows for an organisation to access MIKE OPERATIONS over the Internet (this option requires installation of MIKE OPERATIONS Web as well).

This installation guide describes the installation process for all the different deployment patterns and required associated 3rd party software.

Installation of MIKE OPERATONS Web is described in a separate installation guide.

Important information: Please be aware that all MIKE software (including the DHI License Manager) on the same computer must be installed with the same service pack. This is due to the dependencies between MIKE software products and our wish to use the latest and technically most advanced development systems.

Installation Prerequisites

MIKE OPERATIONS depends on prerequisites as listed below.

Database service (optional)

Because MIKE OPERATIONS runs on a database, a supported database software or service must be installed.

The following databases are supported by MIKE OPERATIONS:

• PostgreSQL
• SQLite
• MS SQL Server

Note

Please note that Oracle databases are not supported as of release 2022 of MIKE OPERATIONS.

SQLite is installed and run automatically by MIKE OPERATIONS. The other database types run as services and must be installed by the user.

PostgreSQL

The MIKE OPERATIONS installer includes an optional PostgreSQL installer that installs a PostgreSQL server along with the PostGIS spatial database extender.

Although the PostgreSQL installer delivered with MIKE OPERATIONS installs the latest PostgreSQL/PostGIS combination, it’s also possible to use older combinations.

Warning

PostgreSQL has a limitted 5-year period of support for each major version of PostgreSQL. After this period, PostgreSQL will not release security and hotfixes for the version. This also mean that MIKE OPERATIONS will not support these versions with new releases.
Read more on the PostgreSQL version policy page and on DHI Developers.

MIKE OPERATIONS 2024.1 supports the following combinations of the two products with this release:

PostgreSQL	PostGIS
PostgreSQL 12	PostGIS 3.0.*
PostgreSQL 13	PostGIS 3.1.*
PostgreSQL 13	PostGIS 3.2.*
PostgreSQL 14	PostGIS 3.1.*
PostgreSQL 14	PostGIS 3.2.*
PostgreSQL 14	PostGIS 3.3.*
PostgreSQL 15	PostGIS 3.3.*
PostgreSQL 15	PostGIS 3.4.*
PostgreSQL 16	PostGIS 3.4.*

Combinations of later versions may also work but have not been tested.

PostgreSQL versions accepted by MIKE OPERATIONS can also be viewed in the file DssDatabases.cfg.xml of the MIKE OPERATIONS installation folder.

Note

In case upgrading a system running on an older unsupported version PostgreSQL, a new version of PostgreSQL should be installed and the database moved to this new installation.

MS SQL Server

MS SQL Server must be installed by the user. An installer is not included with the MIKE OPERATIONS installer. Supported versions include 2019 and 2022.

The DHI License Management application.

The installation wizard of the DHI License Manager is included in the MIKE OPERATIONS installer.

Microsoft .NET Framework 4.7.2

The Microsoft .NET Framework is installed by default when installing Microsoft Windows.

Microsoft Edge WebView2

Microsoft Edge WebView2 is a control that lets MIKE Workbench and MIKE OPERATIONS Desktop (Operator UI) embed advanced web page in docked panels inside the application. The following controls use the Microsoft Edge WebView2.

• MIKE Workbench Start Page
• Operations Manager web page extensions
• Operator UI web items

MIKE OPERATIONS Installation/Upgrade

MIKE OPERATIONS 2024 is installed by running the Setup.exe program coming with the installation media. The installation process consists of two parts.

Note

It is important to run the Setup.exe as administrator to allow all components to be installed.

• Installation of DHI License Management application (only if not previously installed with other MIKE software).
• Installation of MIKE OPERATIONS software files including MIKE Workbench, Database Manager Utility, MIKE OPERATIONS Desktop, and PostgreSQL/PostGIS.

Installation of the MIKE OPERATIONS software package is simple and requires no user interactions beyond accepting the license conditions and specifying the installation folder.

The following section explains how to install or upgrade MIKE OPERATIONS, MIKE Workbench, and required 3rd party software.

If you are installing MIKE OPERATIONS for the first time, PostgreSQL and PostGIS can be installed if you want to run on top of a PostgreSQL database. If you want to install a different combination than the default PostgreSQL versions, refer to APPENDIX A.

Start Installation

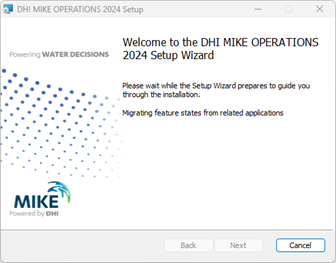

Run the setup.exe file from the installation media/download folder.

setup.exe will make sure that the License Manager as well as PostgreSQL is installed.

Warning

Do not use the MIKE OPERATIONS msi installer unless an existing installation of MIKE OPERATIONS needs to be reinstalled.

Note

Note: In case the DHI License Manager is not installed, the installation wizard of the DHI License Manager will start. Refer to the installation guide of the DHI License Manager for more information about features and license configuration.

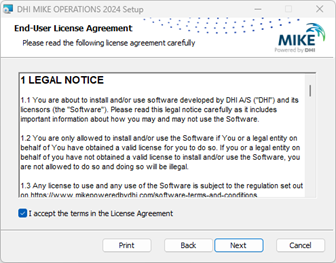

Accept the license agreement.

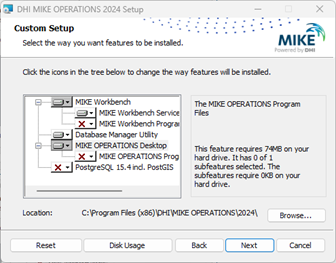

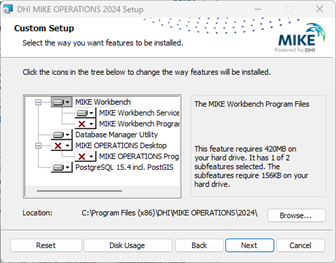

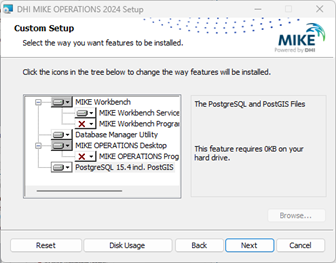

Select Components

MIKE Workbench and the Database Manager Utility are required components when installing MIKE OPERATIONS.

MIKE OPERATIONS Desktop (optional)

PostgreSQL including PostGIS (optional)

It is recommended to install MIKE OPERATIONS with PostgreSQL and PostGIS on a shared server or virtual machine.

Note

Install PostgreSQL and PostGIS on if a database server is not already installed or an older unsupported version of PostgreSQL is currently installed.

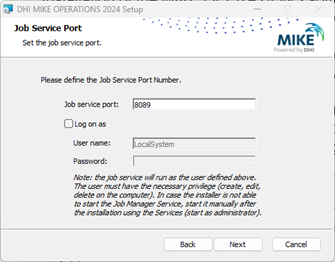

Job Service Port

Specify the port to use for the Job Manager Service.

Use the default port (8089).

It’s possible in this step to specify a computer user profile to be used when running jobs. This can be edited later.

Note

If the Job Manager fails to start, this might be because the default port used for the Job Manager Service is already used.
In that case, please restart the installation process and select a different port number.

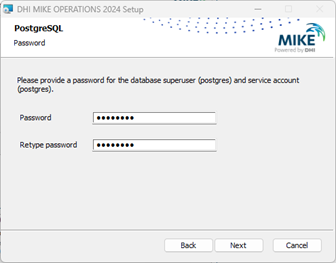

PostgreSQL administrator password

If you’ve selected a PostgreSQL installation, you will be asked to provide a password for PostgreSQL database.

Provide Password to the PostgreSQL database.

Info

The password should be used whenever the Database Manager Utility is used or the PostgreSQL native database management software pgAdmin is applied.

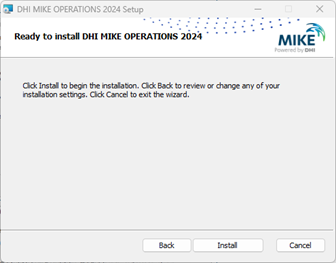

Install

Click Install

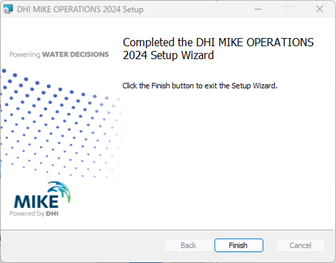

Finish Installation

Click Finish

PostgreSQL Installation

If you are doing a PostgreSQL installation, wait until installation of PostgreSQL and PostGIS is complete.

Click OK to complete the installation once the PostgreSQL installation is complete.

DHI License File

The DHI license is handled through the DHI License Management software, which can be found under DHI License Administration in the Start Menu.

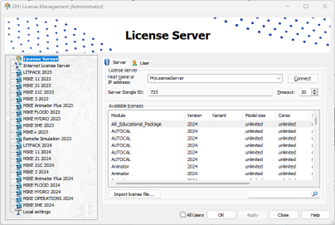

Open the DHI License Management program in the start menu as administrator.

There three different options: - Internet License - Network License - Local License (dongle)

Note

All Users must be ticked to allow job execution (if job service is using another user profile)
Please look in the documentation found by clicking the Help button or contact your local MIKE Sales representative.

Set up Database

Once the software is installed for the first time, it is required to set up a database.

This includes connecting to a database file or server, creating a database, and making a database connection.

Instructions for database setup and connection are provided in the help file for the Database Manager Utility.

The following database types are supported:

• PostgreSQL
• MS SQL Server
• SQLite

It’s also possible to use Azure Database Service for PostgreSQL instead of a local PostgreSQL service.

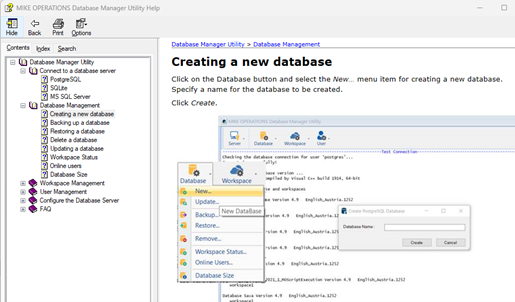

To launch Database Manager Utility, go to the Start menu and search for Database Manager Utility.

Refer to the Database Manager Utility documentation on how to connect to a database server and on how to create a new database.

Connect to a database in MIKE Workbench

After a database has been created in the Database Manager Utility, a connection to the database must be created in MIKE Workbench.

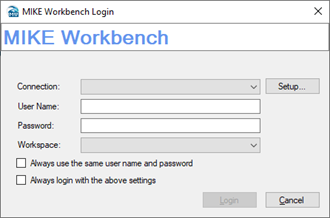

When opening MIKE Workbench, a connection window appears.

Click Setup...*

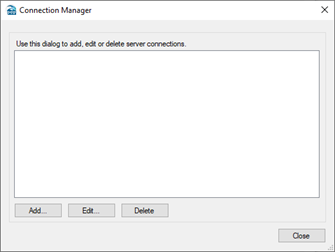

A connection manager them allow you to create a connection.

Click Add...

In the Setup window, a database connection is defined.

If the selected database type is PostgreSQL, MS SQL Server, or Oracle, you should define the server name.

In the current example, we work with a database installed locally and the server name should be set to localhost.

The port should be set to the port associated with the server. This association is made in Database Manager Utility for local services.

The Database is selected from the databases available from the given server/port combination.

The Connection Name is set to the database name by default but can be changed.

For SQLite, you should define the path to the SQLite database file.

The Connection Name is set to the database name by default but can be changed.

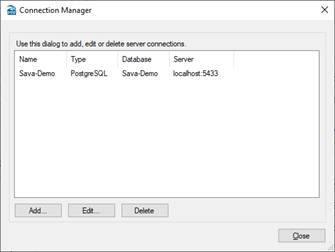

The newly created connection appears in the list.

The Connection menu now shows the newly created database connection.

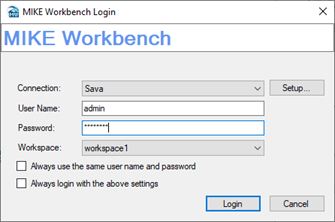

By default, the pre-configured administrator account is called admin. The password is dssadmin.

This can be changed after logging in to the system. See the MIKE Workbench documentation for more information.

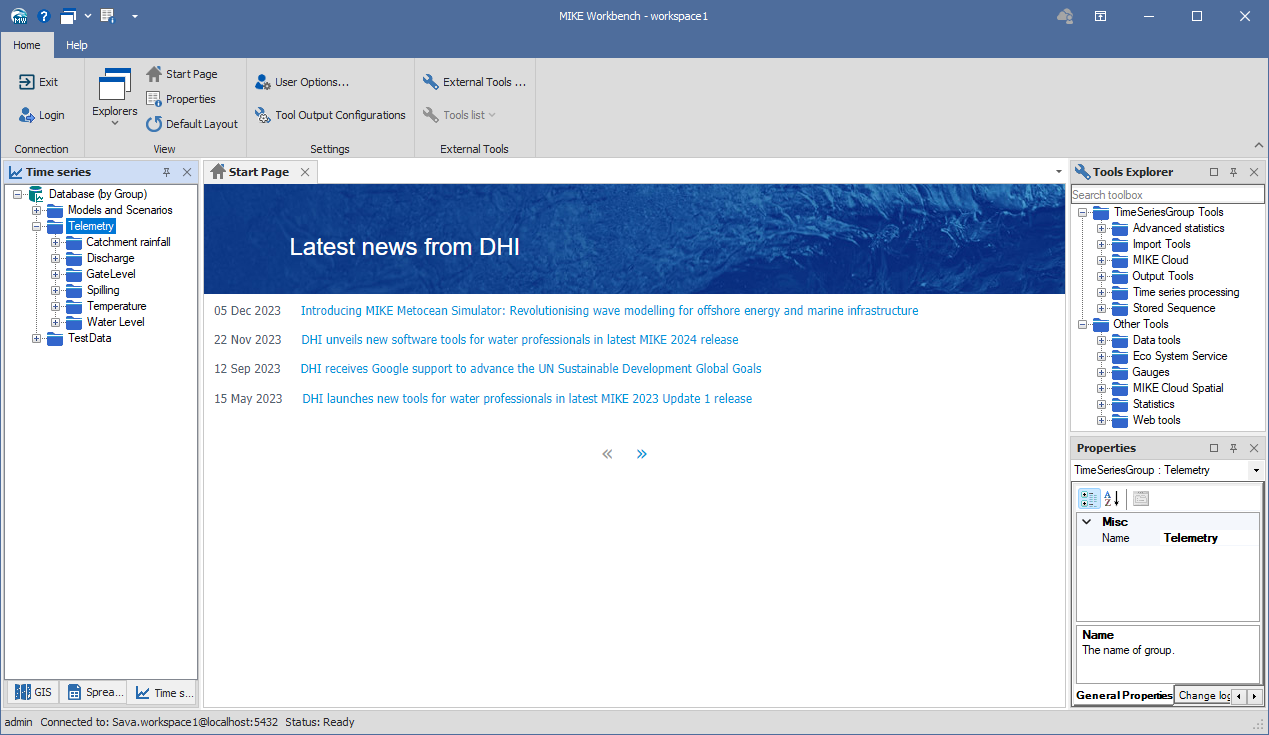

Click Login  

Updating an Existing Database

If you are doing an update, you should ensure the database version and the MIKE OPERATIONS version are consistent. Indeed, from one version to another one, the database schema usually evolved.

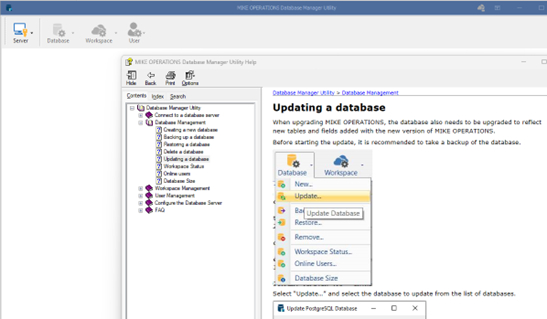

Instructions for updating a database are provided in the help file of the Database Manager Utility.

Beware that after updating the database, MIKE OPERATIONS users working with the earlier version of the software will not be able to use the database. After the database has been updated everybody using the database should update the client.

Database Server Update

This chapter concerns users:

• Installing MIKE OPERATIONS on a computer different from the database server
• Upgrading MIKE OPERATIONS on a computer different from the database server
• Updating a database with Database Management Utility from a computer different from the database server

From version 2017.5, the Mesh Database was included in MIKE OPERATIONS. This requires a specific DLL to be located on the database server. The installer and the Database Management Utility will automatically copy this file if PostgreSQL is installed locally.

In the case PostgreSQL is not installed locally, the user will need to carry out the following steps to ensure MIKE OPERATIONS works correctly:

• Locate and copy the file called DHI_mesh.dll in the MIKE OPERATIONS bin folder
• Log in to the computer on which the database server is installed (PostgreSQL)
• Paste the file to the lib folder of the PostgreSQL installation.

APPENDIX A: Install different version of PostgreSQL

As mentioned in Chapter 2, it is possible to use several versions of PostgreSQL databases.

PostgreSQL Installation

The following table explains how to install a PostgreSQL installer downloaded from the web page of EnterpriseDB.

Run the database installation program e.g. postgresql-XX.X-X-windows-x64.exe

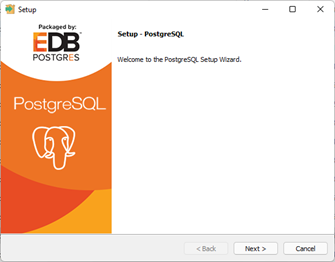

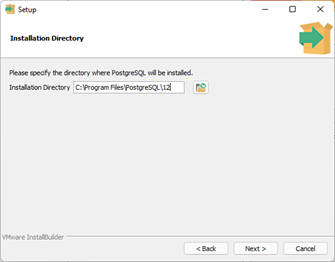

Start of installation Accept the default installation folder.

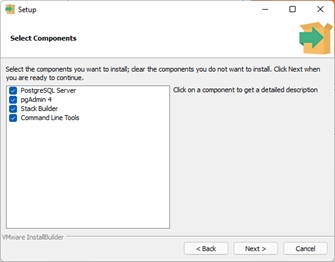

Select the components to install.

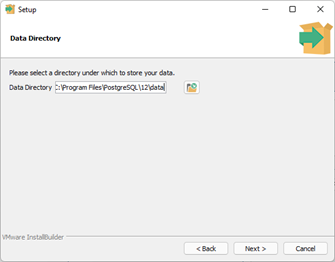

Accept the default data folder.

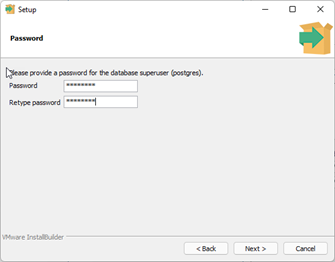

Type in a password of your choice for the postgres user (the administrator for the database server).

Tip

Do not forget this password!

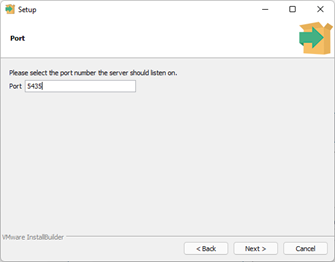

Accept the port number (default port is 5432).

If more PostgreSQL servers are installed, the first free port number after port 5432 is suggested.

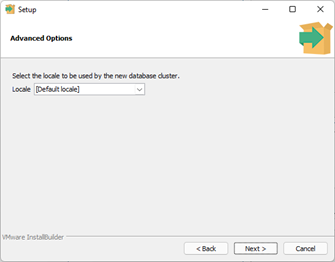

Leave the Locale as Default Locale

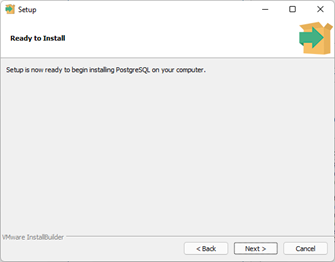

Review the installation summary.

Click Next

The database server installation has finished.

Uncheck the Launch Stack Builder at exit? option and then click Finish.

PostGIS Manual Installation The following table explains how to install PostgreSQL exemplified by using a PostGIS postgis-bundle-pgXXx64-setup-X.X.X-X.exe installer from the OSGeo Download Server.

Run the PostGIS installation program (e.g. postgis-bundle-pg14x64-setup-3.2.3-2.exe).

Start of installation

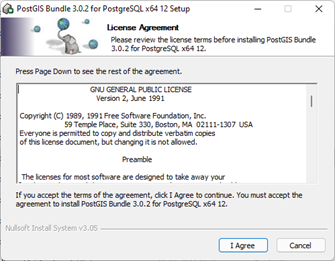

Click I Agree.

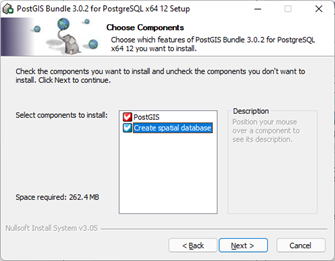

Check Create spatial database.

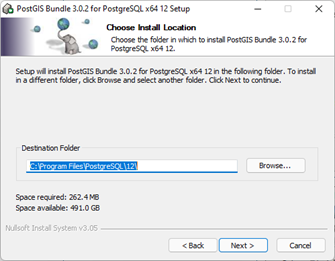

Accept the default folder.

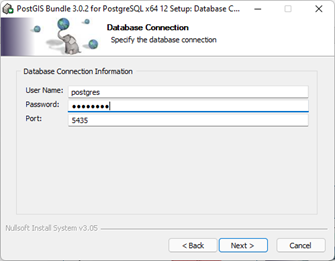

Type in the password that was specified for the postgres user when installing the PostgreSQL database server.

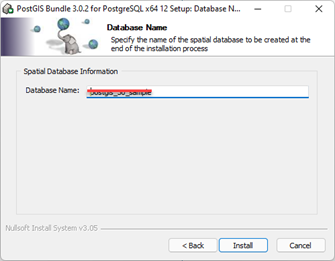

Rename the Spatial database: template_postgis_20

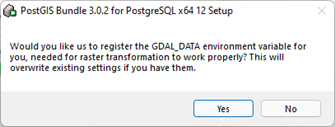

Yes, to the GDAL_Data environment variable.

Yes, to both set of environment variables.

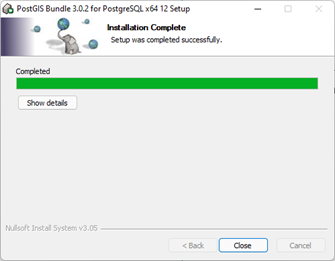

The installation has finished.

Configuration of PostGIS Open the Windows Command Prompt.

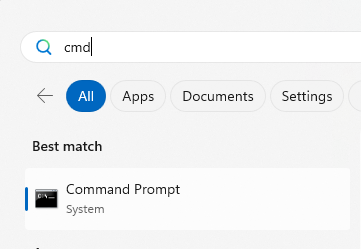

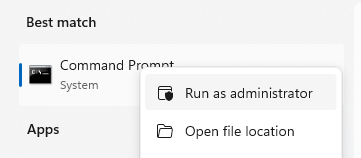

Click the Windows Start Menu and type cmd.

Right-click on cmd.exe and choose Run as administrator.

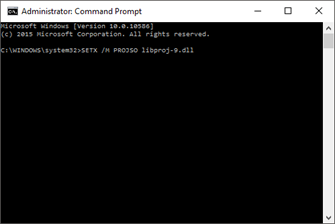

In the command prompt type SETX /M PROJSO libproj-9.dll and press Enter.

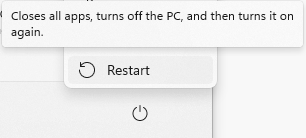

Restart the computer to make the environment variable available to PostGIS

APPENDIX B: Advanced PostgreSQL Database management tool

The PostgreSQL database password provided during installation can be stored in the database for easy access in the future. It is an optional configuration.

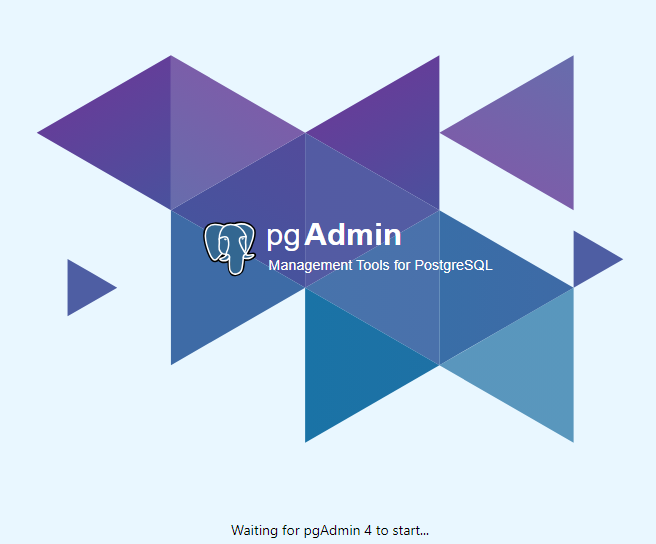

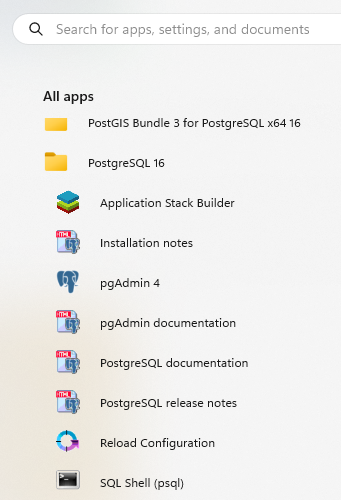

Start the pgAdmin 4 database administration tool from the Windows Start menu.

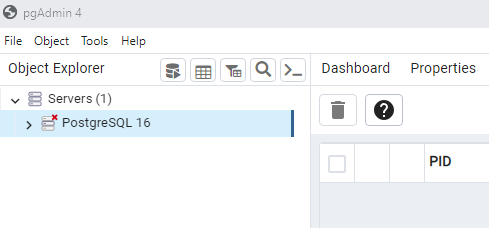

The pgAdmin tool opens.

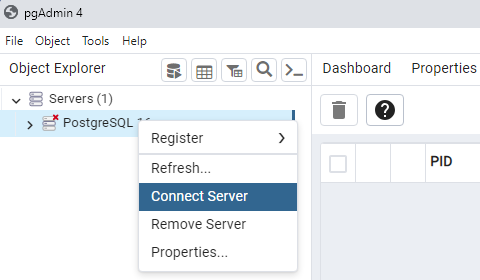

Right click the database server entry for localhost under the Servers node to access Connect Server.

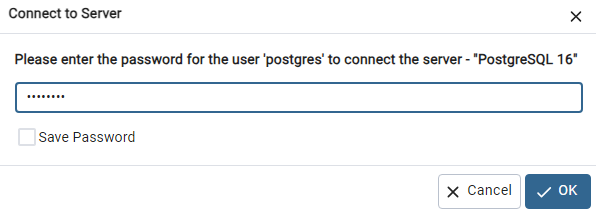

Provide the password for the postgres user.

Note

Check on the Store password option in case you want to store the password locally on the computer.

Note

Clicking on Store password leads to a warning.

Click OK on the warning dialog.  

APPENDIX C: Configuring the PostgreSQL Database Server for remote access

Tip

This step is only needed if the database server shall accept connections from remote computers.

The section describes how to configure the PostgreSQL database server for running in corporate mode.

Start by enabling password save as shown in APPENDIX B.

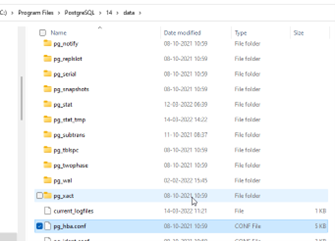

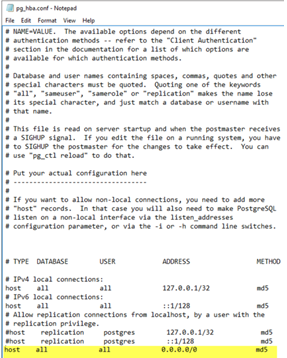

Locate the pg_hba.conf file in the data folder e.g. C:\Program Files\PostgreSQL\16\data and open it in an editor e.g. Notepad.

Insert a new line to open up for all non-local connections to database as shown on the right

host all all 0.0.0.0/0 md5

Adjust spaces!

Save the configuration.

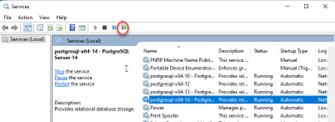

Restart the services to apply the update

Configuring the Windows Firewall for remote access

The section describes how to configure the Windows firewall for MIKE OPERATIONS running in enterprise mode.

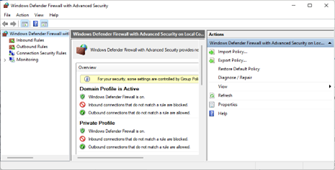

Open the Firewall applet in the Windows Control Panel.

Select Inbound Rules

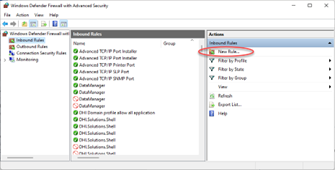

Click New Rule in the Actions panel to the right

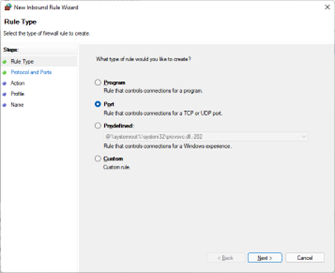

Select Port

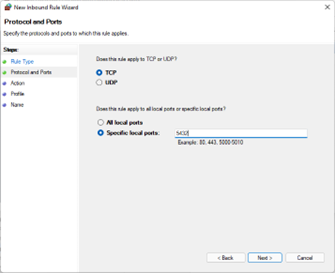

Select TCP, Specific local ports and enter 5432 (or the port number specified when installing PostgreSQL)

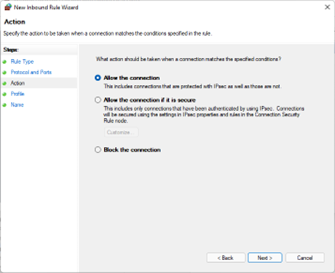

Select Allow the connection.

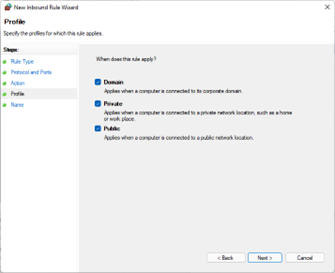

Click on for all profiles.

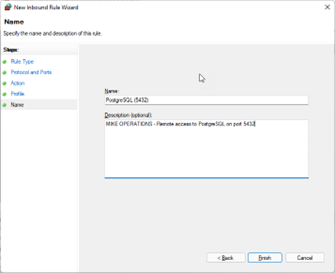

Specify a rule name – e.g. PostgreSQL (5432) – and a description.

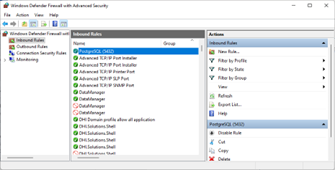

The new rule is now added to the list of Inbound rules.

 

APPENDIX D: Troubleshooting

Job Manager Service will not start

In situations where a specific user has been specified for running the Job Manager Service, the installer could be prevented

from starting the service in case the user does not have the necessary rights to run services.

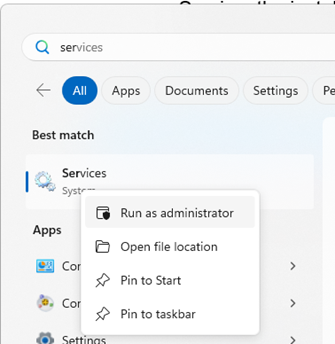

In this case, start the job manager service (DHI Solutions Job Manager Service) manually using the Services application of Windows.

The Services application will automatically grant the user access to running services.

Event Manager Service will not start (System.PlatformNotSupportedException)

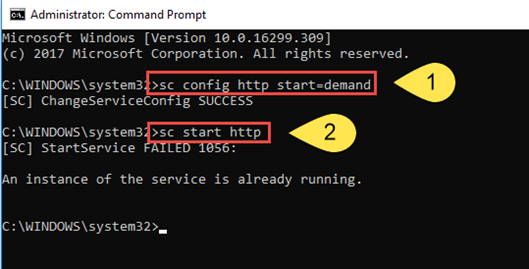

If the DHI Event Manager Service is not starting during the installation, the installation cannot complete and will roll back.

The following stack trace can be found in the Windows Event Viewer.

Service cannot be started. System.PlatformNotSupportedException: Operation is not supported on this platform.
   at System.Net.HttpListener..ctor()
   at System.ServiceModel.Channels.SharedHttpTransportManager.OnOpen()
   at System.ServiceModel.Channels.TransportManager.Open(TransportChannelListener channelListener)
   at System.ServiceModel.Channels.TransportManagerContainer.Open(SelectTransportManagersCallback selectTransportManagerCallback)
   at System.ServiceModel.Channels.TransportChannelListener.OnOpen(TimeSpan timeout)
   at System.ServiceModel.Channels.HttpChannelListener`1.OnOpen(TimeSpan timeout)
   at System.ServiceModel.Channels.CommunicationObject.Open(TimeSpan timeout)
   at System.ServiceModel.Dispatcher.ChannelDispatcher.OnOpen(TimeSpan timeout)
   at System.ServiceModel.Channels.CommunicationObject.Open(TimeSpan timeout)
   at System.ServiceModel.ServiceHostBase.OnOpen(TimeSpan timeout)
   at System.ServiceModel.Channels.CommunicationObject.Open(TimeSpan timeout)
   at DHI.Solutions.EventManager.Service...

To solve the System.PlatformNotSupportedException issue:

1. Start a command prompt as administrator.
2. Run sc config http start=demand
3. Run sc start http (to make sure that the http service is running).

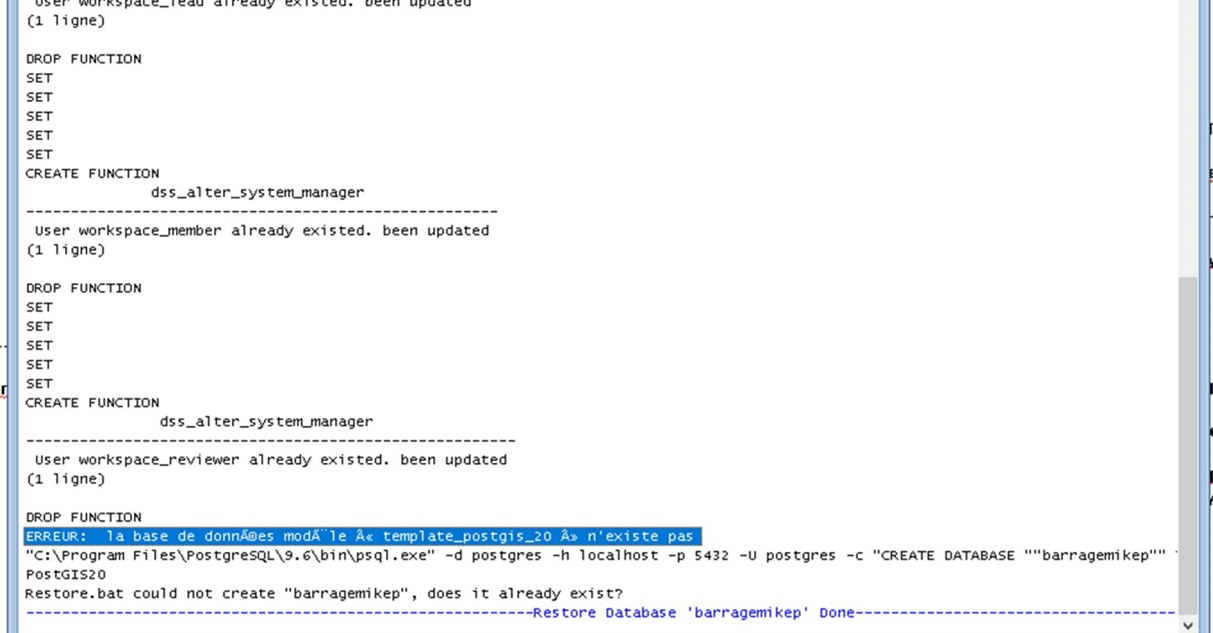

Template_postgis_20 does not exist

After making a fresh installation of MIKE OPERATIONS, when trying to create a new database, if you receive an error message mentioning a missing database model template_postgis_20, it means that PostGIS was not installed correctly.

The solution is to reinstall PostGIS (see APPENDIX A). The download file can be found online.

APPENDIX E: Custom Tools, Managers and Providers

MIKE OPERATIONS is a software product build on plugable components.

This also includes adhoc custom components developed for projects.

The loading of custom components is added done in runtime.config files.

In case updates to the runtime.config file has been made the installer will notify the user during installation.

Once a new installation of MIKE OPERATIONS has been made, custom components loaded in previous versions MIKE OPERATIONS must manually be moved to the new versions of the ruimetime.config files.

The sample below shows a section loading a custom tool MyCustomTool with the full name MyProject.Tools.MyCustomTool compiled into the assembly (dll) MyProject.Tools.MyCustomTool.dll.

<Plugin
    Name="MyProject.Tools.MyCustomTool"
    Type="DHI.Solutions.Generic.ITool"
    Assembly="MyProject.Tools.MyCustomTool.dll" />
