Web

Web links can be added to the ribbon of MIKE OPERATIONS.

Create and configure web links from the General Settings page by clicking the Web button.

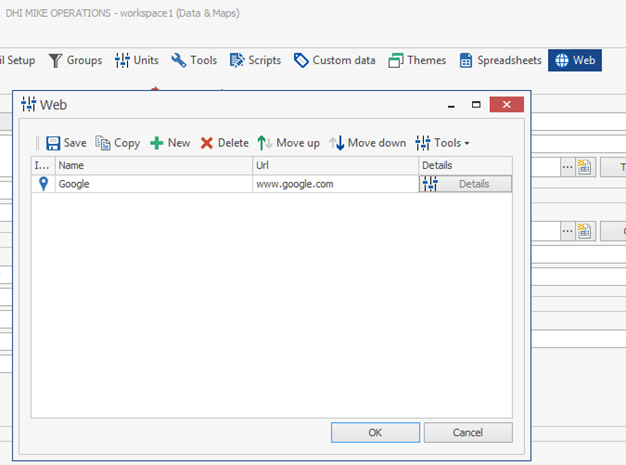

The dialog will display the web links configured.

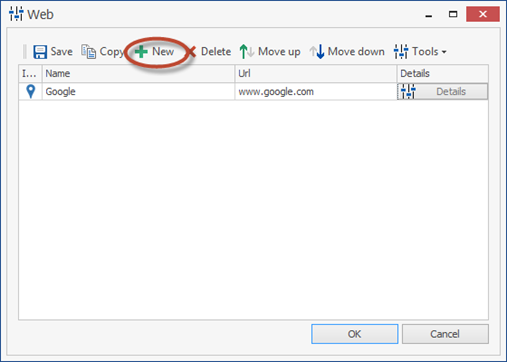

Click the Add button to add a new web link to the configuration.

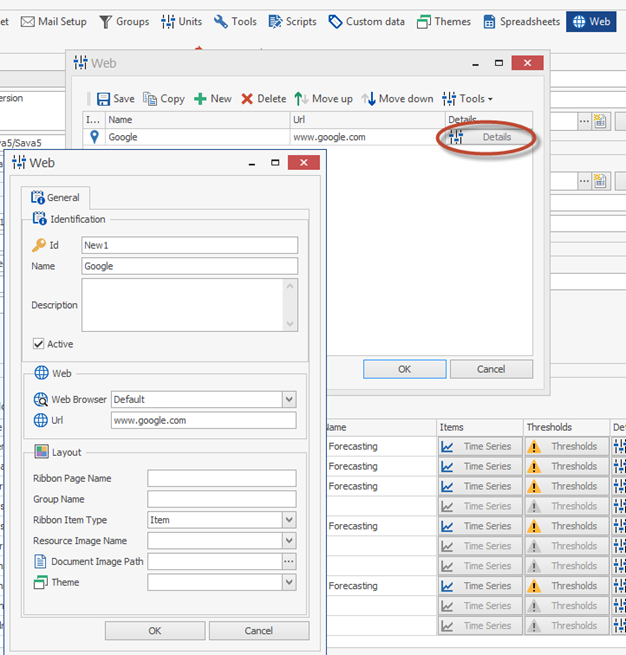

Click the Details button to configure the web links.

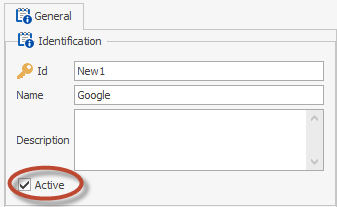

• Active
  Activate the web link by checking this field.

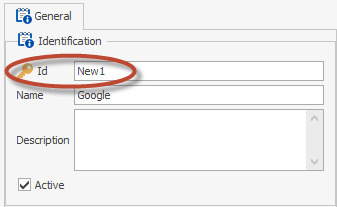

• Id
  Id of the web link. The id is used as reference.

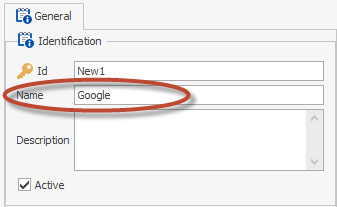

• Name
  Name of the web link, shown in the ribbon.

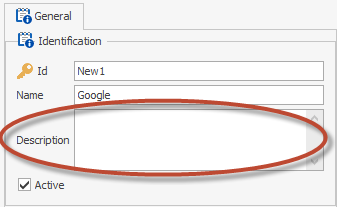

• Description
  Description of the web link.

• Web browser
  Specify the web browser used.

  • Default
    Open the default web browser in a new window.
  • Embedded
    Open the web link in an embedded web browser (Internet Explorer), so that the web browser can be docked.
• Url
  The web address of the web page to show.

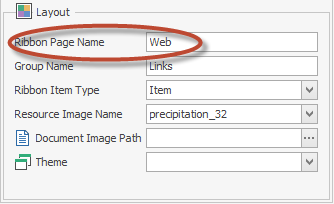

• Ribbon Page Name
  The name of the ribbon page where the button of the web link is shown.

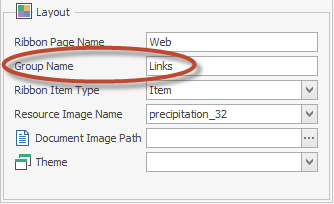

• Group Name
  Group name sets the group of the web link in the ribbon.

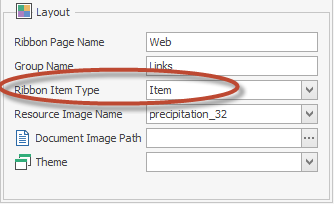

• Ribbon Item Type
  Ribbon item type controls the type of control added to the ribbon.

  • Check Item
    A simply check item
  • Gallery Check Item
    A check item added to a gallery of items.
  • Menu Check Item
    A menu item added to a menu.
    The path of the menu is specified in the Group name field, separating each sub menu entry with a vertical bar |.
    E.g. My Group|Menu button name|First parent menu|Second parent menu.
    Images of each menu item can be specified by adding Feature Types for each sub menu.
  • Item (default)
    A simple item like Check Item without check mark functionality.
  • Menu item
    A menu item like Menu Check Item without check mark functionality.
  • Hidden (Always on)
    The script is not shown in the ribbon.

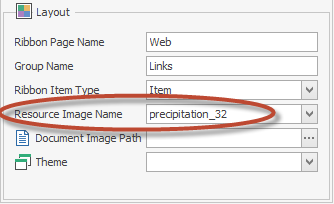

• Resource Image Name
  Resource images are a list of built in images for web links.
  Clicking the dropdown, will display the available images.
  The selected image will be used where the feature type is displayed, E.g. in the ribbon, in tooltips and the Table View.
  Images with a _32 postfix, has an initial size of 32x32 pixels. Images without a postfix, has a size of 16x16 pixels.
  The initial size has an impact on the quality of the image when displayed in MIKE OPERATIONS.

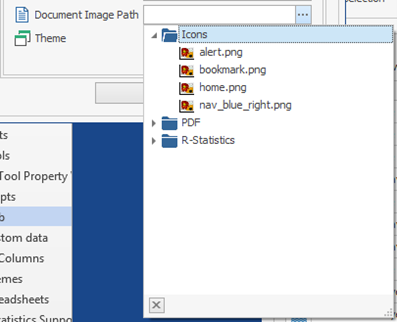

• Document Image Path
  Document Image Path is for additional user images placed in the Document Manager of the MIKE Workbench.
  Images specified in this path will overwrite the image specified in the Resource Image Path.

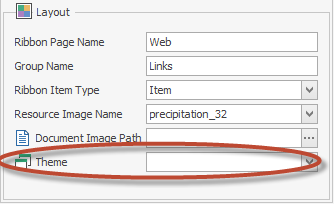

• Theme
  Specify the theme where the web link should be shown. If no theme is specified, the web link is shown on all themes.
