Units

For any time series type, the units and decimals can be specified.

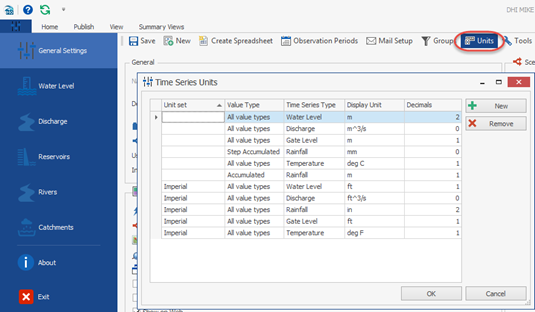

Click the Units button to display the time series unit*s setup form.

Units are Display Units. This means e.g. that all water level time series are shown in meters with 2 decimals in the sample above.

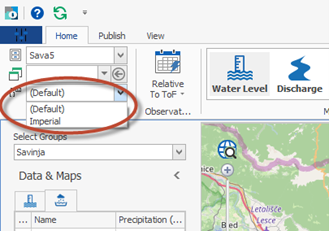

More sets of units can be defined. The unit sets defined can be selected in the ribbon.

• Unit set
  The unit set where the unit conversion should be used.
  The default unit set used, is the unit set with no name.
  This set is also used as the units defining the threshold units.
  This also means that when defining unit sets, a unit set with no name must always be present.

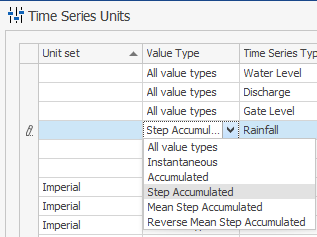

• Value Type
  The value type of the time series that the unit applies to.
  The unit will apply to all value types when selecting All value types.
  Using value types is useful when displaying accumulated time series (Show accumulated time series).

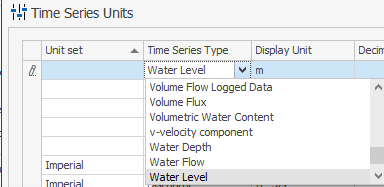

• Time Series Type
  The type of the time series. Select the time series type from the compo box.

• Display Unit
  The unit to display for the selected time series type.
  The time series type defines the available units.

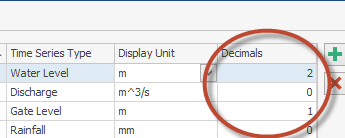

• Decimals
  The number of decimals to show for values of time series of the specified type.
