Spreadsheets

MIKE Workbench contains a spreadsheet manager for making and maintaining spreadsheets.

These spreadsheets can be configured to be shown when clicking a ribbon item in the ribbon of MIKE OPERATIONS.

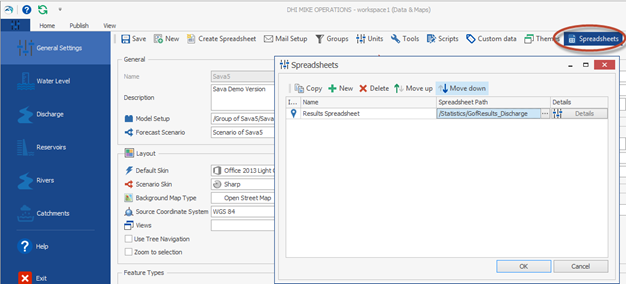

Create and configure spreadsheet ribbon items from the General Settings page by clicking the Spreadsheets button.

The dialog will display the spreadsheets configured.

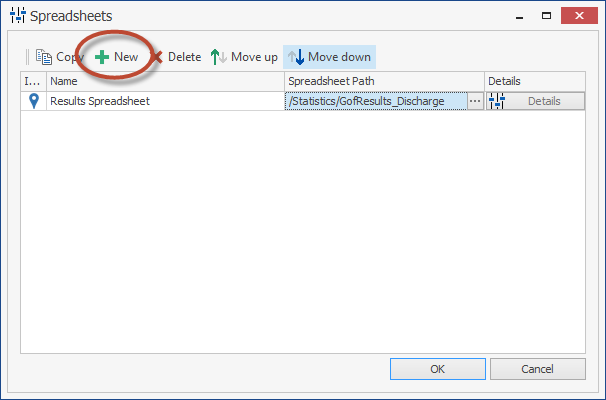

Click the Add button to add a new spreadsheet configuration.

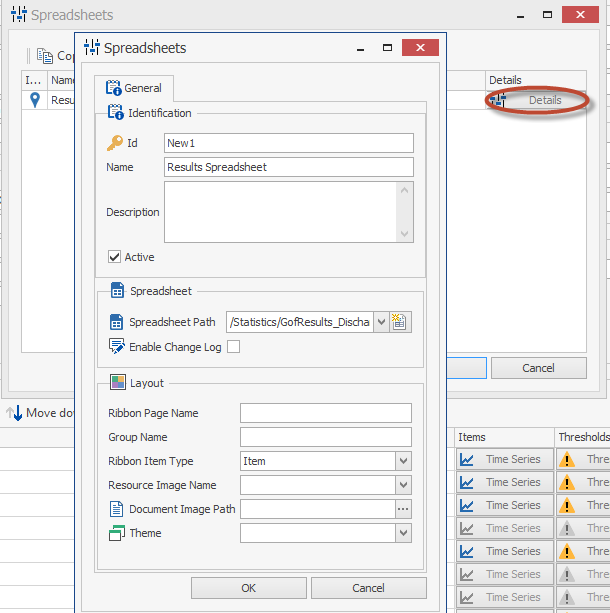

Click the Details button to configure the spreadsheet.

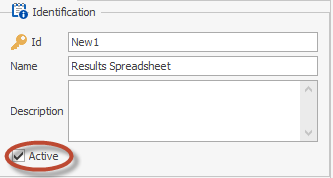

• Active
  Activate the spreadsheet by checking this field.

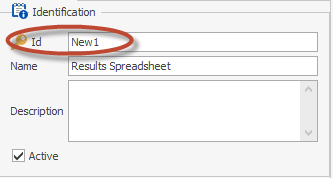

• Id
  Id of the spreadsheet. The id is used as reference.

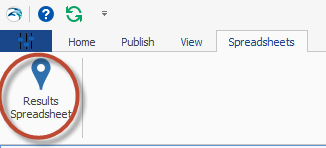

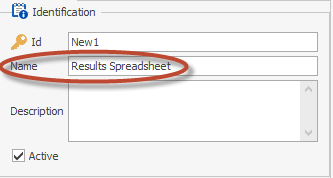

• Name
  Name of the spreadsheet ribbon item, shown in the ribbon

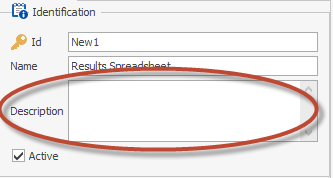

• Description
  Description of the spreadsheet.

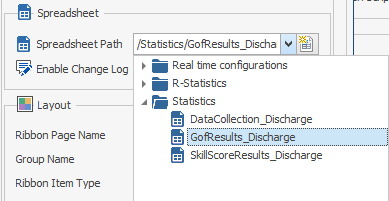

• Spreadsheet Name
  Name of the spreadsheet in MIKE Workbench to display when clicking the ribbon item.

• Enable Change Log
  Enables change log for the spreadsheet when saving the spreadsheet.

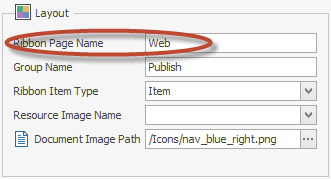

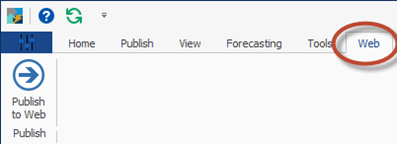

• Ribbon Page Name
  The name of the ribbon page where the button of the spreadsheet is shown.

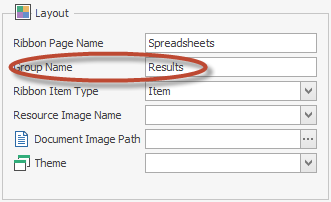

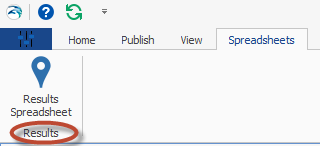

• Group Name
  Group name sets the group of the script in the ribbon.

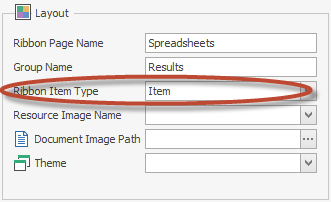

• Ribbon Item Type
  Ribbon item type controls the type of control added to the ribbon.

  • Check Item
    A simply check item
  • Gallery Check Item
    A check item added to a gallery of items.
  • Menu Check Item
    A menu item added to a menu.
    The path of the menu is specified in the Group name field, separating each sub menu entry with a vertical bar |.
    E.g. My Group|Menu button name|First parent menu|Second parent menu.
    Images of each menu item can be specified by adding Feature Types for each sub menu.
  • Item (default)
    A simple item like Check Item without check mark functionality.
  • Menu item
    A menu item like Menu Check Item without check mark functionality.
  • Hidden (Always on)
    The script is not shown in the ribbon.

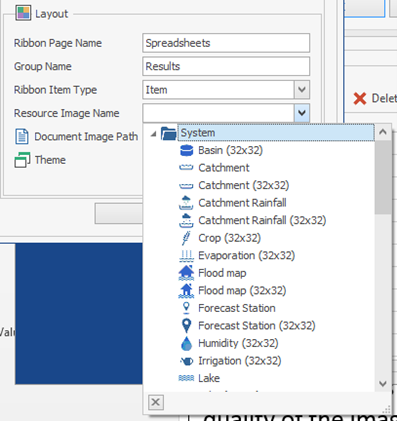

• Resource Image Name
  Resource images are a list of built in images for spreadsheets.
  Clicking the dropdown, will display the available images.
  The selected image will be used where the feature type is displayed, E.g. in the ribbon, in tooltips and the Table View.
  Images with a _32 postfix, has an initial size of 32x32 pixels. Images without a postfix, has a size of 16x16 pixels.
  The initial size has an impact on the quality of the image when displayed in MIKE OPERATIONS.

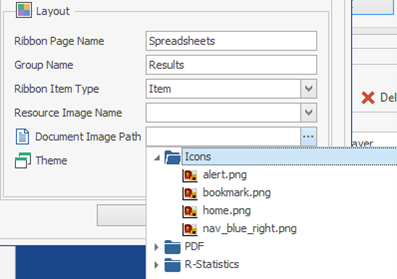

• Document Image Path
  Document Image Path is for additional user images placed in the Document Manager of the MIKE Workbench.
  Images specified in this path will overwrite the image specified in the Resource Image Path.
