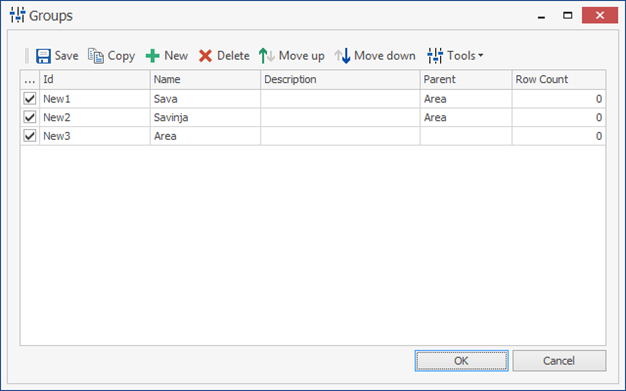

Groups (Filter)

Groups are filters, so that features can be filtered in the UI according to the filter groups specified on each feature.

E.g. data quality, area and/or location.

• Active
  Activate the group by checking this field.

• Id
  Id of the group. The id is used as reference.

• Name
  Name of the group as displayed in the application.

• **Description Description of the group.

• Parent
  Filter groups support nesting. This means that each filter group can have a parent, specifying where in a hierarchy, the filter group is placed.
  When specifying a parent, selecting filter groups will be done using a tree like selection control in the navigation panel.

• Row count
  For displaying top or lower count of the features in the Table view according to their threshold value for the specified time.
  A positive value indicates the top values and a negative value indicates the lower values (E.g. 10 shows the top 10 rows and -5 displays the lower 5 values).

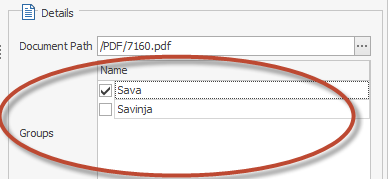

Set the groups that each feature belongs to in the details view of each feature type (selected from the left part of the application menu, below General Setting).

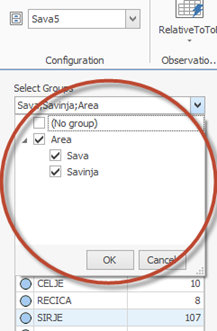

Filter groups are selected in the Table View.

Items

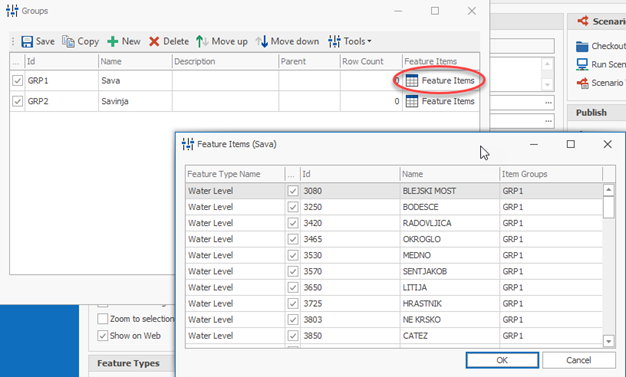

Items (locations/stations) of a filter group across feature types can be displayed clicking the “Feature items” button of a filter group.
