Documents

Documents of the document manager can be configured, so that they are accessible from the ribbon of MIKE OPERATIONS.

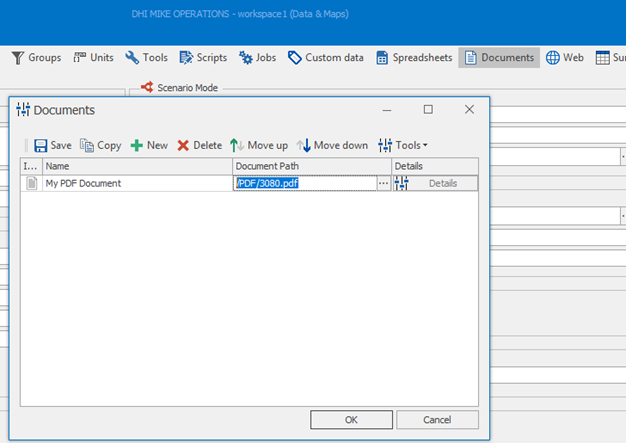

Create and configure documents from the General Settings page by clicking the Documents button.

The dialog will display the documents configured.

Click the Add button to add a new document to the configuration.

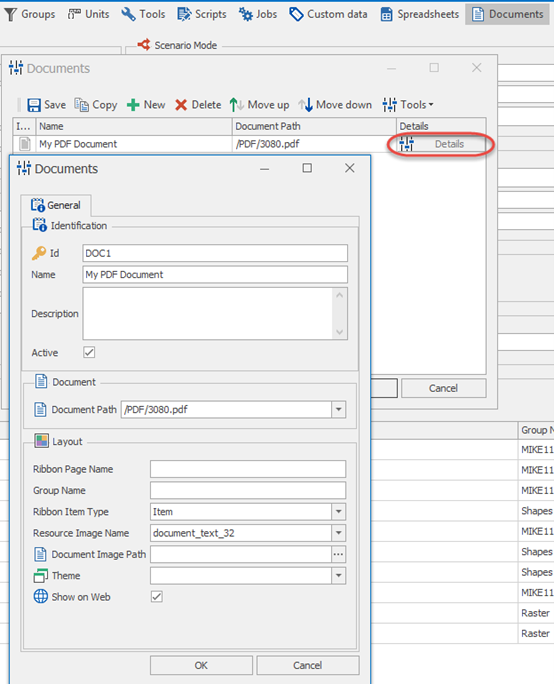

Click the Details button to configure the document.

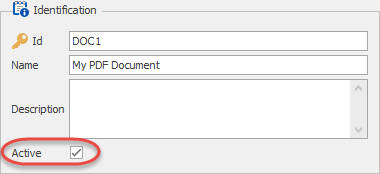

• Active
  Activate the document by checking this field.

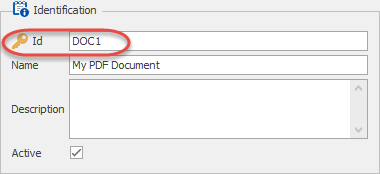

• Id
  Id of the document. The id is used as reference.

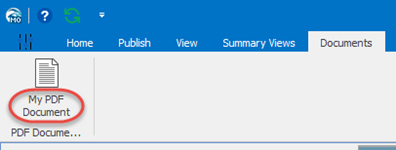

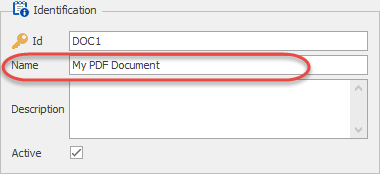

• Name
  Name of the document will be shown in the ribbon.

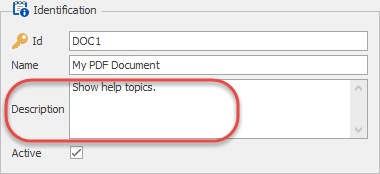

• Description
  Description of the document.
  The description will be shown as tool tip when hovering the ribbon item.

• Document Path
  The path to the document in the Document Explorer of MIKE Workbench.
  The path can be either a path to a document or a path to a document folder.
  Specifying a path to a document, will create a ribbon item for opening the document with the associated program in Windows.
  Specifying a document group, will create a drop down ribbon item, allowing the user to browse for a document in the specified folder.
  The document can then be opened using the context menu.

  Browsing and opening a document from the ribbon when configuring a document path.

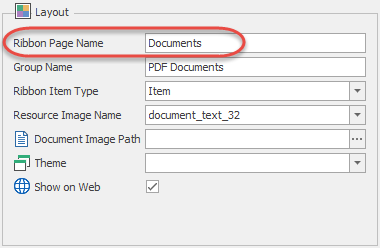

• Ribbon Page Name

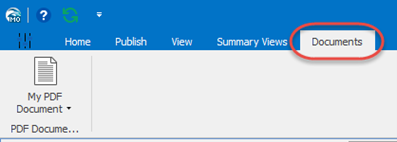

  The name of the ribbon page where the button of the document is shown.

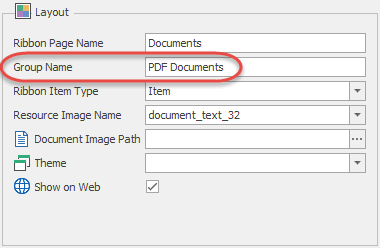

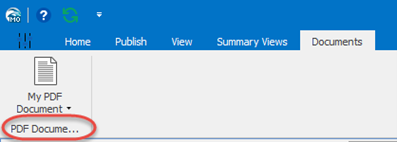

• Group Name
  Group name, sets the group of the document in the ribbon.

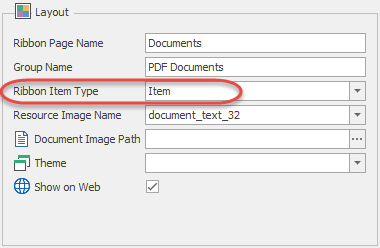

• Ribbon Item Type
  Ribbon item type controls the type of control added to the ribbon.


  • Check Item:
    A simply check item for selecting or activating the item
  • Gallery Check Item:
    A check item added to a gallery of items for selecting or activating the item.
  • Menu Check Item:
    A menu item added to a menu.
    The path of the menu is specified in the Group name field, separating each sub menu entry with a vertical bar |.
    E.g. My Group|Menu button name|First parent menu|Second parent menu.
    Images of each menu item can be specified by adding Feature Types for each sub menu.
  • Item (default)
    A simple item like “Check Item” without “check mark” functionality for executing or opening the item.
  • Menu item
    A menu item like “Menu Check Item” without “check mark” functionality, for executing or opening the item.
  • Hidden (Always on)
    The item is not shown in the ribbon. This ribbon item type is used when a feature layer should be always visible on the map.

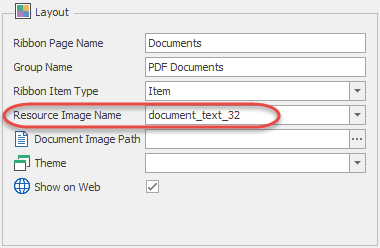

• Resource Image Name
  Resource images are a list of built in images for ribbon items.
  Clicking the dropdown, will display the available images.
  The selected image will be used where the item is displayed, E.g. in the ribbon, in tooltips and the Table View Images with a _32 postfix, has an initial size of 32x32 pixels. Images without a postfix, has a size of 16x16 pixels.
  The initial size has an impact on the quality of the image when displayed in MIKE OPERATIONS.

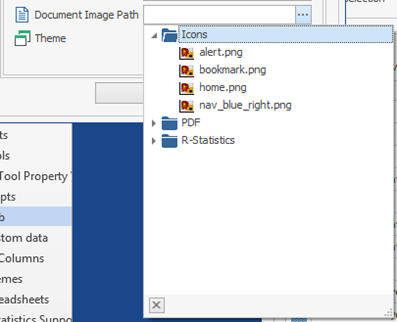

• Document Image Path
  Document Image Path is for additional user images placed in the Document Manager of the MIKE Workbench.
  Images specified in this path will overwrite the image specified in the Resource Image Path.

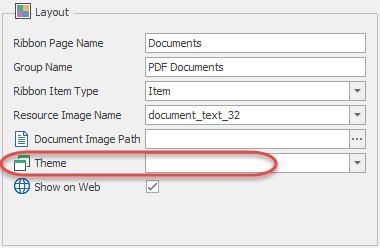

• Theme
  Specify the theme where the web link should be shown. If no theme is specified, the web link is shown on all themes.

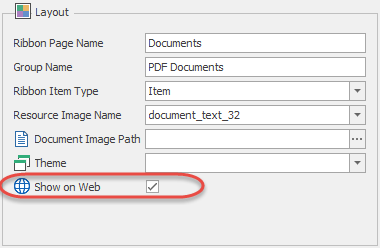

• Show on Web
  Check this to display the item in MIKE OPERATIONS Web.
