Chart Panels

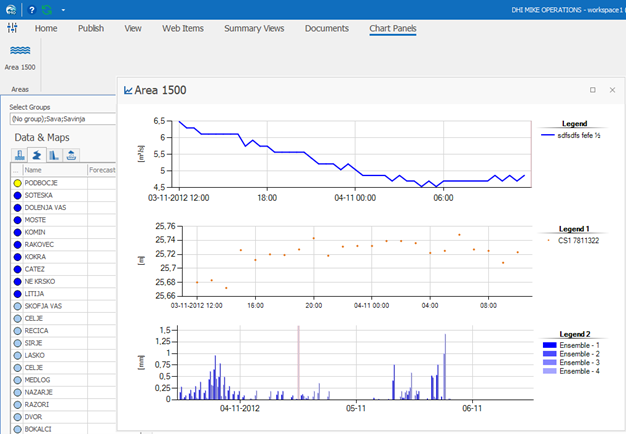

Chart Panels allows configuring user defined charts with multiple chart areas. Time series Data will show the data of the selected observation period.

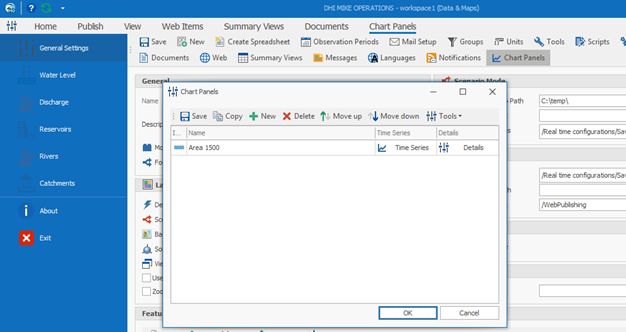

Chart Panels are configured from the General Settings page by clicking the Chart Panels button.

The dialog will display the Chart Panels configured.

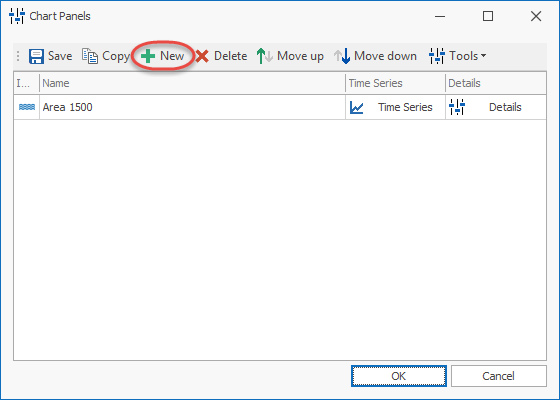

Click the New button to add a Chart Panel to the configuration.

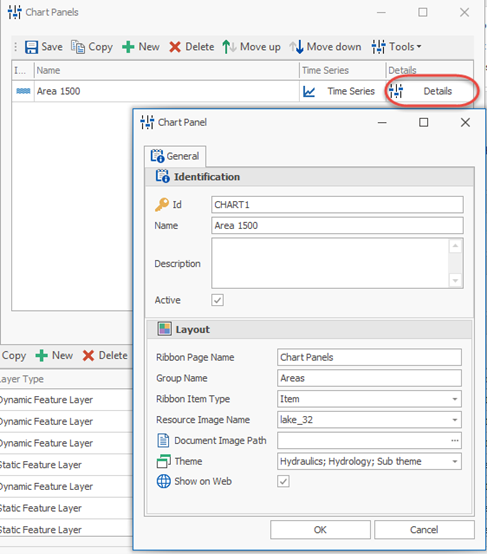

Click the Details button to configure the Chart Panel.

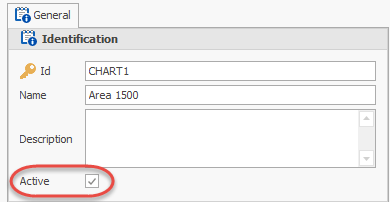

• Active
  Activate the Chart Panel by checking this field.

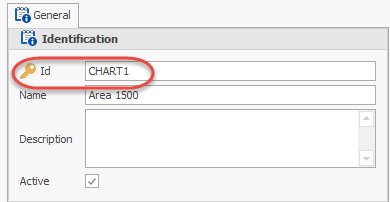

• Id
  Id of the Chart Panel. The id is used as reference.

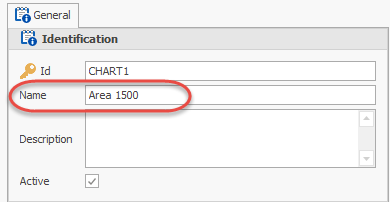

• Name
  Name of the Chart Panel, shown in the ribbon.

• Description
  Description of the Chart Panel. The description will be shown as a tool tip when hovering the button in the ribbon.

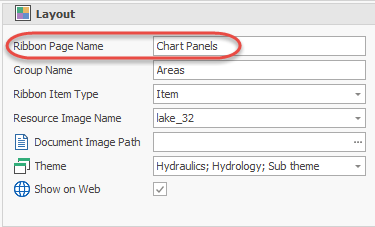

• Ribbon Page Name
  The name of the ribbon page where the button of the Chart Panel is shown.

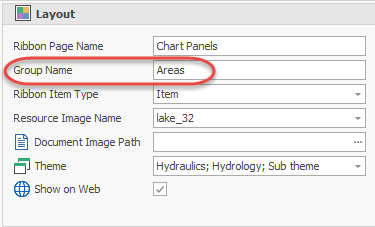

• Group Name
  Group name sets the group of the Chart Panel in the ribbon.

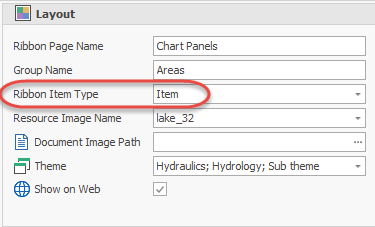

• Ribbon Item Type
  Ribbon item type controls the type of control added to the ribbon.


  • Check Item
    A simply check item.
  • Gallery Check Item
    A check item added to a gallery of items.
  • Menu Check Item
    A menu item added to a menu.
    The path of the menu is specified in the Group name field, separating each sub menu entry with a vertical bar |.
    E.g. My Group|Menu button name|First parent menu|Second parent menu.
    Images of each menu item can be specified by adding Feature Types for each sub menu.
  • Item (default)
    A simple item like Check Item without Check mark functionality.
  • Menu item
    A menu item like Menu Check Item without check mark functionality.
  • Hidden (Always on)
    The script is not shown in the ribbon.

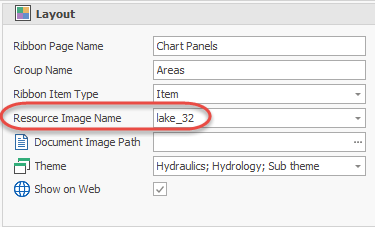

• Resource Image Name
  Resource images are a list of built in images for chart panels.
  Clicking the dropdown, will display the available images.
  The selected image will be used where the feature type is displayed, E.g. in the ribbon, in tooltips and the Table View Images with a _32 postfix, has an initial size of 32x32 pixels. Images without a postfix, has a size of 16x16 pixels. The initial size has an impact on the quality of the image when displayed in MIKE OPERATIONS.

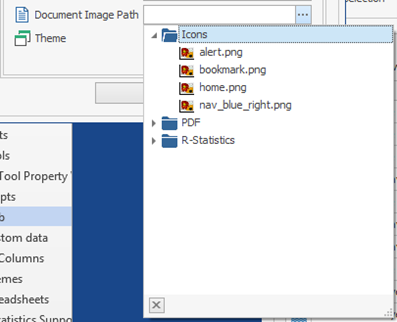

• Document Image Path
  Document Image Path is for additional user images placed in the Document Manager of the MIKE Workbench.
  Images specified in this path will overwrite the image specified in the Resource Image Path.

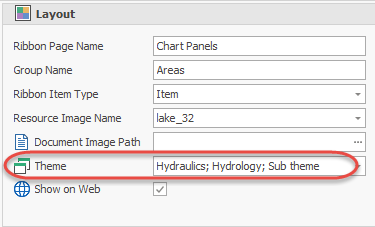

• Theme
  Specify the theme where the summary view should be shown. If no theme is specified, the summary view is shown on all themes.

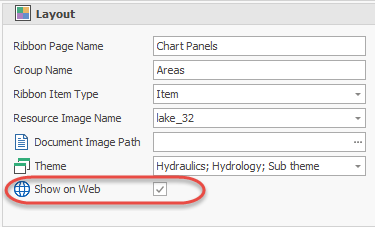

• Show on Web
  Check this to display the item on MIKE OPERATIONS Web.


Time Series

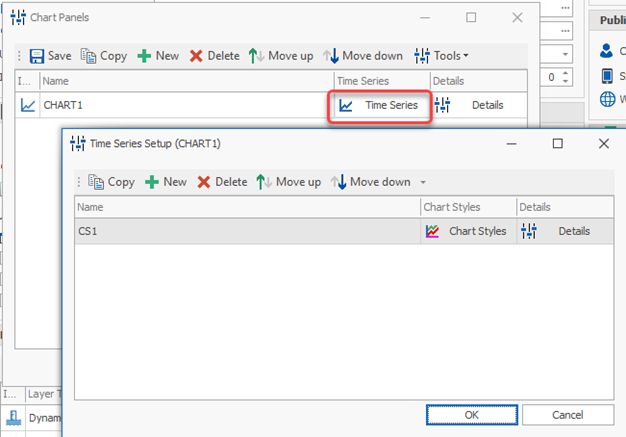

Time series of a chart panel can be configured clicking the Time Series button og the Chart Panel.

Add new time series clicking the New button.

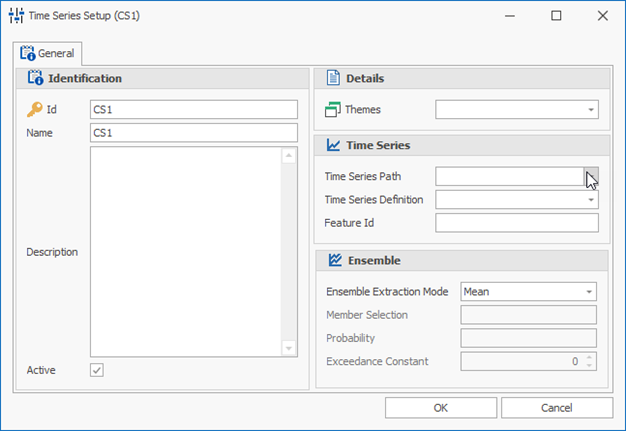

Each time series is configured clicking the Details button of the time series.

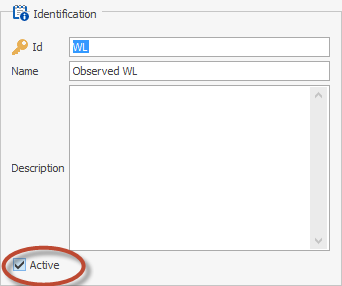

• Active
  The Active checkbox is used to enable or disable the time series.
  Disabling a time series will hide the time series in Charts and Tables.

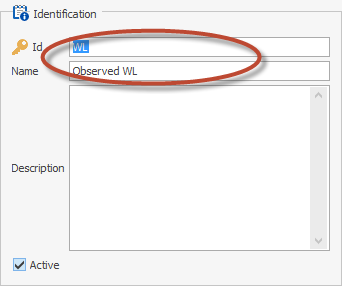

• Id and Name
  Give the time series an id and a name.
  Id is used as reference in spreadsheets. The name is used as display name in MIKE OPERATIONS.

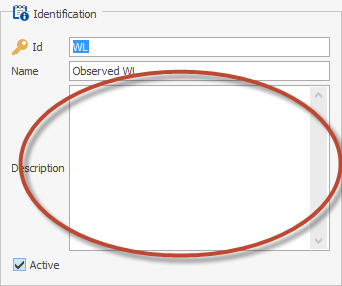

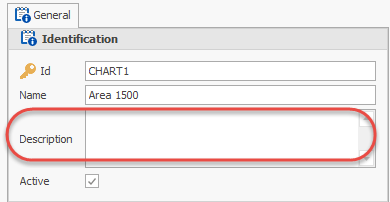

• Description
  Description is optional and can contain more lines of text.
  Description is only for additional information about the time series and will not be display elsewhere.

• Themes
  Specify the theme where the time series is visible.
  If no theme is selected, the time series is displayed on all themes.

• Time Series Path
  Full path to the time series in the time series manager.
  The path supports placeholders. This means that selected themes and observation periods can be part of the path to the time series.
  Use e.g. [ObservationPeriod.Name] to insert the name in the path before fetching the time series.
  Refer the section about placeholders for information about available placeholders.

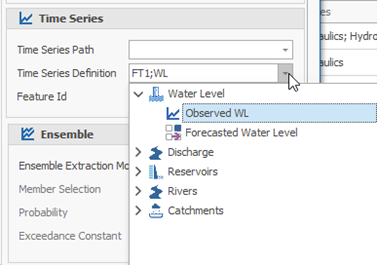

• Time Series Definition
  Instead of a time series path, a time series definition and an id to a feature can be specified.
  Time series definition defines the feature type and the time series definition to show.

• Feature Id
  Feature id defines the location to get the time series from, when a time series definition has been specified.

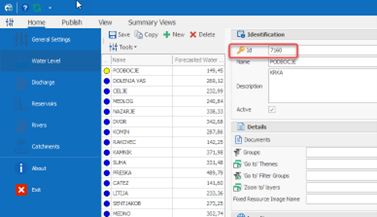

  Get the feature id from the location in the navigation panel.


Ensemble

Click the Ensemble group to configure how to display ensemble time series for the time series type.

Ensemble time series are defined as time series with more than one member.

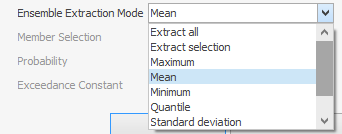

• Ensemble Extraction Mode
  Time series will be extracted according to the Ensemble Extraction Mode.

  The following modes are supported:
  • Extract all
    Extracts all time series in the ensemble.
  • Extract selection
    Extracts the time series specified in the Member selection field.
  • Maximum
    Displays the maximum value of each time step for all time series in the ensemble.
  • Mean
    Extracts the mean value for each time step, of all time series in the ensemble.
  • Minimum
    Displays the minimum value of each time step for all time series in the ensemble.
  • Quantile
    Displays the quantile values for each time step of all time series in the ensemble.
  • Standard deviation
    Extracts the standard deviation for each time step.
  • Exceedance
    Extracts the ratio of ensemble members exceeding the specified value for each time step.
  • Non exceedance
    Extracts the ratio of ensemble members not exceeding the specified value for each time step.

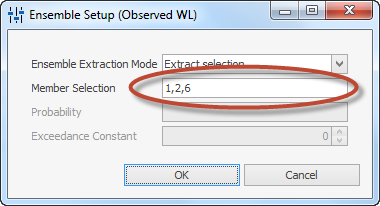

• Member selection
  Comma separated list of members to include in the selection (e.g. 1,2,6).

  Member selection is only used in mode Extract selection.

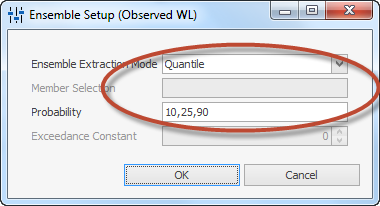

• Probability
  Sets the probability for the quantile statistics option. Probability is a comma separated string with the quantile percent values (e.g. 10,25,90). Percent values must use decimal points.
  Probability is used for EnsembleExtractionMode = Quantile only.

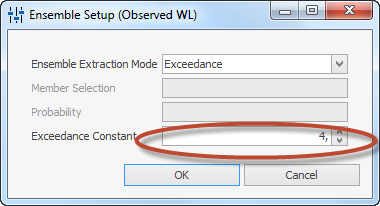

• Exceedance Constant
  Sets the Exceedance Constant value option.
  Exceedance Constant is used for Extraction Mode = Exceedance and Non exceedance.



Chart Styles

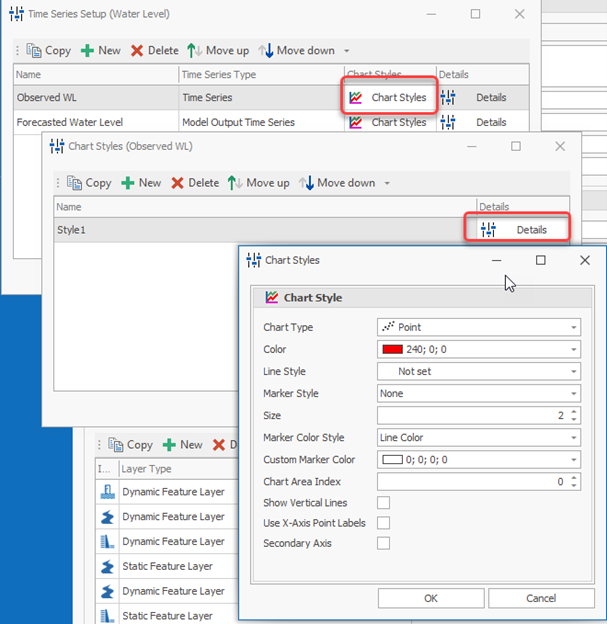

As time series can contain more series (e.g. an ensemble), the style of each time series can be configured clicking the Chart styles button.

The chart styles are applied to time series in the same order as appearing in the list of chart styles.

Click New to create a new chart style, and Details to configure the chart style.

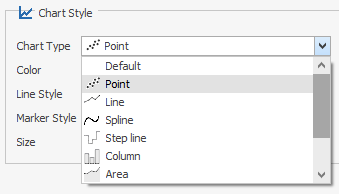

• Chart Type
  The type of the chart in the Chart View.

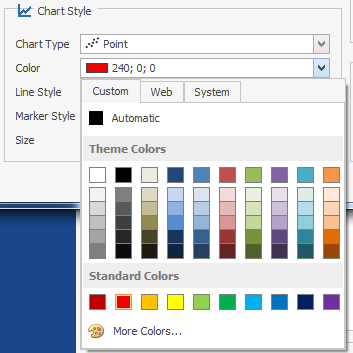

• Color
  Color is the color of the line or bars (for step accumulated time series) of the time series.

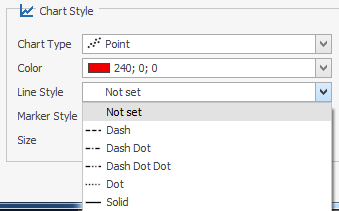

• Line Style
  Line Style is the line style of the time series in the Chart View.

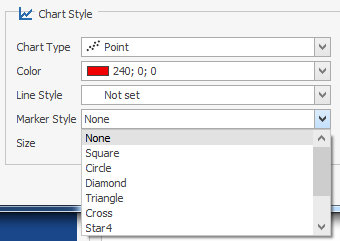

• Marker Style
  The style of the point marker in the Chart View.
  The size of the marker will be set to the size of the line multiplied by 5.

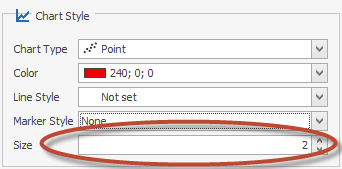

• Size
  Size is the line thickness of lines or marker in the Chart View.

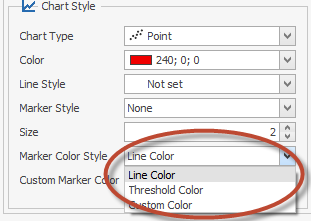

• Marker Color Style
  Configure the marker color style.


  • Line Color
    The marker will have the same color as the line.
  • Threshold Color
    The marker will have the color as the threshold at the time where the marker is placed on the chart.
  • Custom Color
    The marker will have a fixed color defined in the Custom Marker Color property.

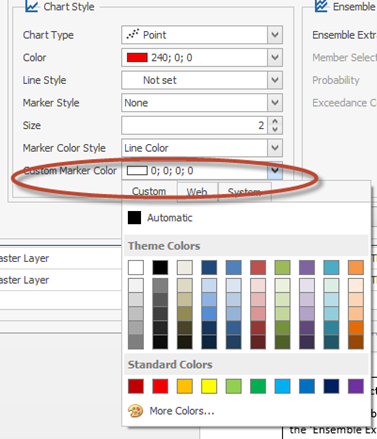

• Custom Marker Color
  Color of the marker when Custom Marker Color is selected in Marker Color Style.

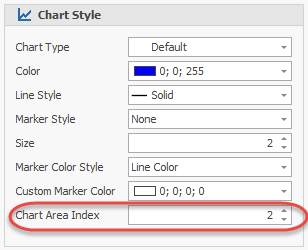

• Chart Area Index
  The chart area index, defines in what chart area the time series should be displayed.
  The index will not define the order of the chart areas, as the order is defined by the order of the time series in the list of time series.

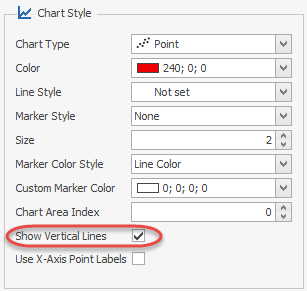

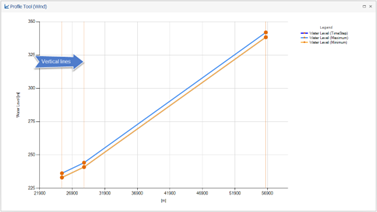

• Show Vertical Lines
  Shows vertical lines in the chart for every x-value.
  The marker color defines the color of the vertical line.
  Vertical lines are applied when there is only one time series in the chart area.

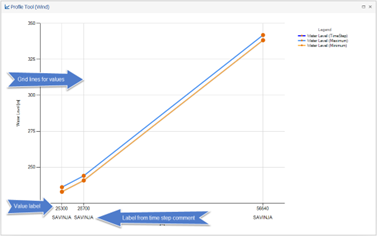

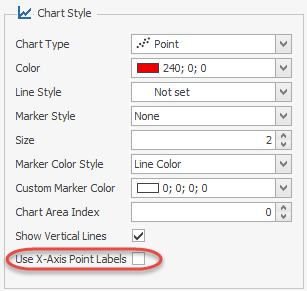

• Use X-Axis Point Labels
  X-axis labels and a fixed x-axis grid are shown for every x-value of the time series.
  Additional label lines are added if comments have been specified on the time steps. To have more label lines, the comment of the time step should be separated by a semicolon.
  Note that vertical lines are applied when there is only one time series in the chart area.
