EPANET Adapter

About EPANET

EPANET is a public domain, water distribution system modeling software package developed by the United States Environmental Protection Agency's (EPA) Water Supply and Water Resources Division.

Prerequisites

There is no Prerequisites for using this adaptor.

Supported Model objects

The below list of model objects can be derived from a MIKE Epanet setup.

• Curve
  • Parameters:
    • Name
    • Data
• Junction
  • Parameters:
    • Name
    • Elevation
    • Calculate demand
    • Zone
    • Demand
• Pattern
  • Parameters:
    • Name
    • Multipliers
• Pipe
  • Parameters:
    • Name
    • Diameter
    • Head node
    • Tail node
    • Length
    • Friction
    • Initial status
• Pump
  • Parameters:
    • Name
    • Head node
    • Tail node
    • Initial speed
    • Initial status
    • Curve
• Reservoir
  • Parameters:
    • Name
    • Head
    • Pattern
• Tank
  • Parameters:
    • Name
    • Elevation
    • Diameter
    • Initial level
    • Minimum level
    • Maximum level
    • Minimum volume
    • Volume curve
• Valve
  • Parameters:
    • Name
    • Head node
    • Tail node
    • Diameter
    • Type
    • Initial status
    • Initial setting
• Zone
  • Parameters:
    • Name

Configuration

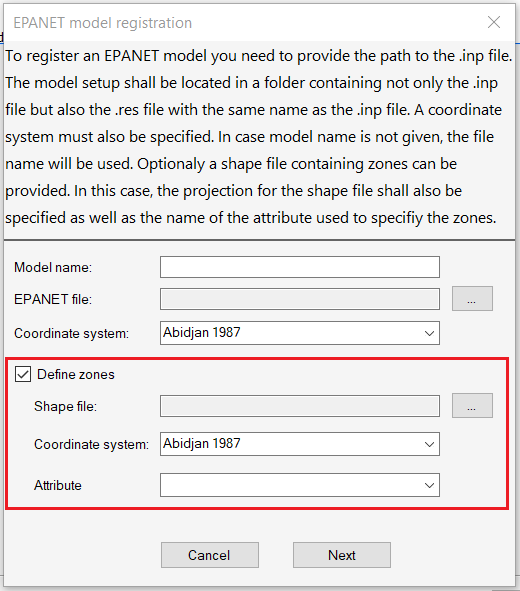

If Define zones is checked at registration, the adapter defines the zones by specifying a shape file containing zones.

Limitations

• Inp - file must be in the root folder of the setup.
