User interface support¶

The description of jobs has mainly been based on what could be called a source code level -- namely the job XML format. However, this is not the approach that most users will implement when working with jobs. The MIKE Workbench Job Manager provides an extensive user interface completely shielding the user from the intricacies of the XML format.

This section describes how to create, execute and schedule jobs from within the Job Manager User interface.

The Job Explorer¶

The Job Explorer which is depicted in Figure 3 is used for managing jobs in terms of opening jobs for editing, renaming and deleting. Jobs are also executed and scheduled from here.

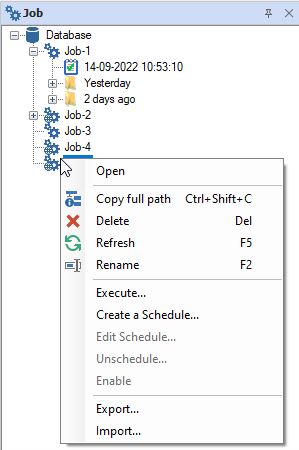

Figure 3 Job explorer and job context menu

Figure 3 briefly describes the menu item actions.

Menu item	Description
Open	Opens the selected job for editing with the Job view editor
Copy full path	Copies the full path of the job in the job explorer to the clipboard.
Refresh	Refreshes the job tree
Delete	Deletes the selected job and all schedules defined for it.
Rename	Renames the selected job
Execute	Executes the selected job. Note: a schedule is typically set-up for automatic scheduled execution while the Execute menu item is for direct one-time execution
Create a Schedule	Sets up an execution schedule for the selected job in a specified job host.
Edit Schedule	Edits existing job schedules on a specified job host.
Unschedule	Unschedules the selected job in a selected job host.
Enable	Enables or disables the job schedule.
Export	Exports the selected job as an XML file
Import	Imports an XML job file to the Workbench database.

Table 2 Job menu items

Note: In order to create a new job, select the Create job menu item on the root node (Database) in the Explorer.

An executed job, scheduled as well as directly executed, always produces a log of the execution. These logs are available as job child nodes. In Figure 1 it can thus de deducted that Job-3 has been executed once and Job-1 7 times. The job log name is the time stamp of execution.

Defining job hosts and provider services¶

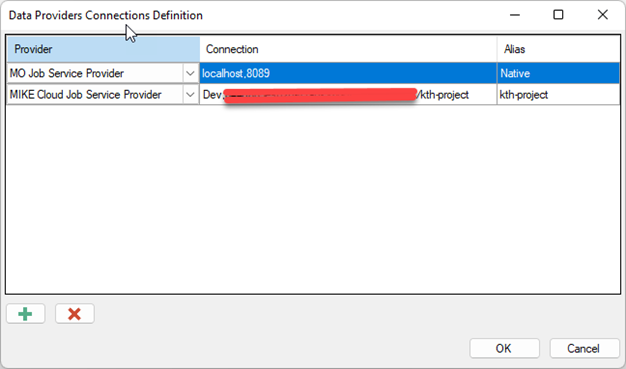

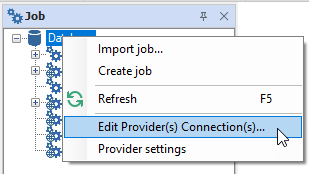

From the context menu of the root node in the job explorer, Edit Provider(s) Connection(s) can be selected where hosts and provider services can be specified.

The dialog allows configuration of the hosts and job service providers.

Provider - Select a provider service to configure.
Connection - Specify the connection string of the provider.
Refer to the provider service on how the connection string is configured.
Alias - Optional alias used as display name for the provider service.

Hosts¶

Hosts are computers that can run simulations and jobs as background processes, i.e. processes that are separate from the application process that a user works with when defining and starting the execution run.

Provider Services¶

A provider service is a service able to run jobs stored in the job manager of MIKE Workbench.

MO Job Service Provider¶

The native job service provider MO Job Service Provider to be used when Windows Servers and workstations are used for running jobs.

This job service provider used the Windows Scheduler for scheduling and running jobs.

The connection string requires the following format:

<hostname>,<port> (separate the name/IP and port with a comma)

The name or IP address of the computer
The Job Service port, default values is 8089.
If the job service port is left empty, port 8089 is used.

MIKE Cloud Job Service Provider¶

The MIKE Cloud Job Service Provider is a job service for executing jobs in the DHI MIKE CloudPlatform.

The MIKE Cloud Job Service is running a container based on a predefined container image. For scheduling a job, the MIKE Cloud Job Service is using cron jobs.

The connection string should have the following format:

<Environment>;<API key>;<project path>

Environment is the Platform environment to use. By default, the environment is the production environment "Prod".
API key is a Guid generated in the MIKE Cloud Admin Center.
Project path is the path to the project in the MIKE Cloud Platform. The path should start with a slash /.
The project specified will be the project charged for the use of the service.

When using the MIKE Cloud Job Service, it is important that the cloud job service has access to the MIKE OPERATIONS database.

It is recommended to use an Azure Database for PostgreSQL.

The MIKE Cloud Job Service Provider has been tested using Azure Database for PostgreSQL, Single Server and Flexible Server.

Refer to the section about configuring Azure Database for PostgreSQL in the Database Manager Utility help file.

Tip

If the connection fails, you should clear the cache by deleting the file (for Prod):
%localappdata%\DHI.oidccache.bin

Supported Job Tasks¶

When creating jobs based on the MIKE Cloud Job Service Provider, only a subset of the standard tasks supported by the native MO Job Service Provider can be used.

The following tasks are supported.

ExportDocument
RunJob
GetScenarioInfo
RunScenario
RunScript
MakeTimeStamp
ManageChangeLog
ManageInitialConditions
ManageJobLogs
ManageSimulations
Vacuum

Container Image¶

The container image used for running jobs on the MIKE Cloud Job Service, is based on the "mcr.microsoft.com/dotnet/runtime:6.0-bullseye-slim" targeting Microsoft .NET 6.0 running on a Debian Linux image (Bullseye).

For more information, refer to the MIKE OPERATIONS SDK section on DHI Developers.

The container image used, contains MIKE OPERATIONS managers, tools, providers and adapters, based on MIKE OPERATIONS NuGet packages targeting .NET Standard 2.0 and published on the internal DHI NuGet feed.

The following NuGet packages are installed in the container image (including dependent managers).

For an updated list of NuGet packages installed on the container image used, refer to DHIDevelopers.

For information on what each NuGet package contains, refer to the MIKE OPERATIONS SDK section on DHI Developers.

NuGet package

DHI.MikeOperations.DocumentManager.Provider.MikeCloud
DHI.MikeOperations.DocumentManager.Tools.Export
DHI.MikeOperations.DocumentManager.Tools.Import
DHI.MikeOperations.GISManager.Provider.MikeCloud.GIS
DHI.MikeOperations.GISManager.Provider.MikeCloud.Raster
DHI.MikeOperations.GISManager.Tools.Dfs2Import
DHI.MikeOperations.GISManager.Tools.Dfs2TemporalRasterFileExport
DHI.MikeOperations.GISManager.Tools.Dfs3Import
DHI.MikeOperations.GISManager.Tools.DfsuImport
DHI.MikeOperations.IndicatorManager
DHI.MikeOperations.JobManager.Tools.JobExport
DHI.MikeOperations.MetadataManager
DHI.MikeOperations.PlacesManager
DHI.MikeOperations.ScenarioManager
DHI.MikeOperations.ScriptManager.IronPython
DHI.MikeOperations.SpreadsheetManager
DHI.MikeOperations.TimeseriesManager.Provider.MikeCloud
DHI.MikeOperations.TimeseriesManager.Tools.AdvancedStatistics
DHI.MikeOperations.TimeseriesManager.Tools.BasicStatistics
DHI.MikeOperations.TimeseriesManager.Tools.ImportTools
DHI.MikeOperations.TimeseriesManager.Tools.ImportTools.USGS
DHI.MikeOperations.TimeseriesManager.Tools.MikeCloudUpload
DHI.MikeOperations.TimeseriesManager.Tools.Processing
DHI.MikeOperations.TimeseriesManager.Tools.TimeseriesExport
DHI.MikeCore.Linux.rhel7
DHI.MikeOperations.ScenarioManager.Adapters.MIKE1D
DHI.MikeOperations.ScenarioManager.Adapters.MIKE21FM
DHI.MikeOperations.ScenarioManager.Adapters.MIKEFlood
Npgsql

If no job host is defined, the system will default to "localhost". This is only feasible in case of a single-machine setup where MIKE OPERATIONS and the database is in the same machine.

In systems with multiple servers, named jobhosts should be defined. It will make it clear which machine has the schedule and allow cross-machine scheduling where a client can schedule any job in any machine.

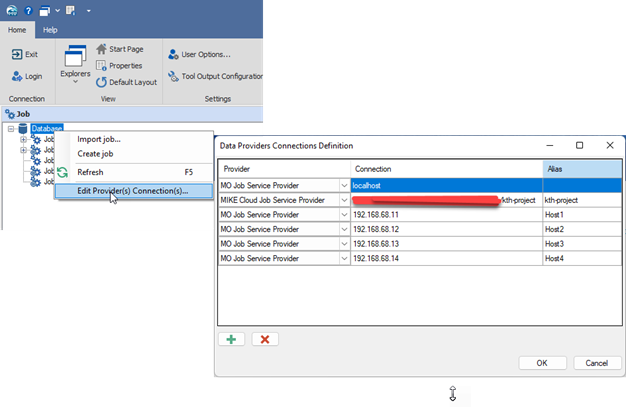

Figure 12 Provider Connection dialog, defining 5 remote hosts and service providers

When clicking OK, the name and connection of the job hosts are validated.

The Job Editor View¶

This view which is depicted in Figure 4 is used for editing jobs. As can be seen, it provides a tree- structured view with 3 types of root level nodes. These are:

A Properties node used for defining global job properties
An ItemGroup node used for defining global items
Target nodes

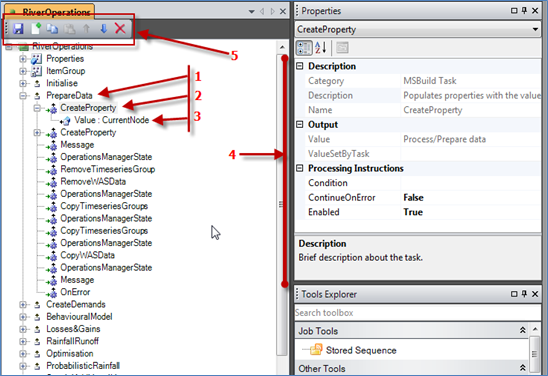

Figure 4 Job editor view

Note the following from the figure:

PrepareData at point 1 is a target including 15 tasks
CreateProperty at point 2 is a task including an Output element
Value at point 3 represents an Output element
Properties for any selected node can be edited from the Property control shown at point 5
The toolstrip shown at point 5 provides functionality for saving the job being edited, adding a new element to the job where the type of element depends on the current selected node, copying and pasting elements, moving elements up and down and finally deleting elements.

The adding of elements, properties, items, targets, tasks and output all takes place from the element parent node. This is done in the following way:

In order to add a new target: select the root node (representing the whole job) and click the Add button
In order to add a new property: select the Properties node and click the Add button
In order to add a new item: select the ItemGroup node and click the Add button
In order to add a new task: select the relevant target node and click the Add button
In order to add a new output element: select the relevant task and click the Add button.

When clicking the Add button for adding a task, a task selection form as shown in Figure 5, appears.

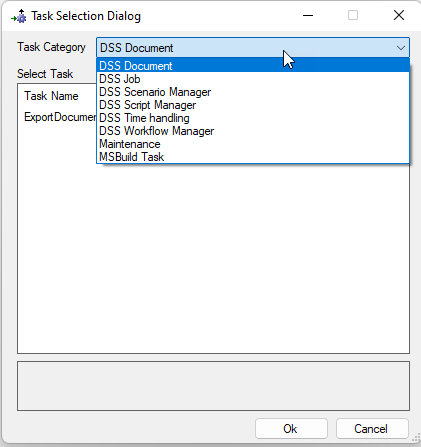

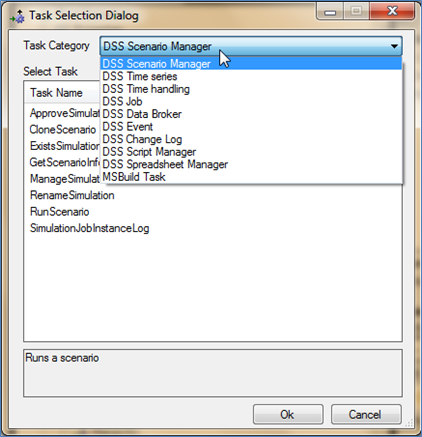

Figure 5 Task selection form

As can be seen from the figure, tasks are categorized according to functionality area, scenarios and time series etc. The latter task category - MSBuild3 Task includes a number of general purpose tasks which are not Workbench specific but rather deal with file handling and job building functionalities.

This includes tasks like CallTarget, OnError, Message, WriteLinesToFile, ReadLinesFromFile etc.

The Job Instance Log¶

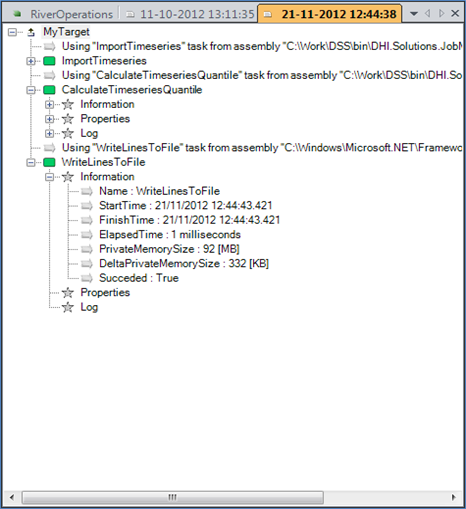

Whenever a job is executed, a job instance log is being generated. The log includes status of each executed task including its input, output, processing time and memory usage. An example of such a log is displayed in Figure 6.

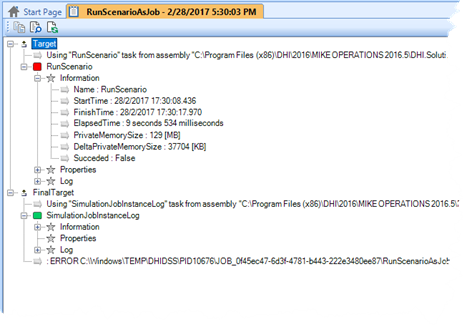

Figure 6 Job instance log

The log displayed in the figure comes from an execution of the job from Listing 1 sample job source. Note in the figure how the log displays a green icon indicating that the task executed without errors, how each task execution is logged in three sections, namely Information with an overall status of the execution, Properties with a listing of all the task input and out parameters with values as well as a Log section which includes various task specific log information.

Note

Note: The log is being created and updated in the database as the job progresses with the task execution. At the same time the Job explorer is being notified about the changes to the job log. This is in order to refresh the job user interface with the latest information on the executing jobs. This notification however, relies on the MIKE Workbench Event Manager being active. Should this not be the case, the job user interface will not be updated as the job is being executed.

Execute a job¶

Job execution takes place from the Job Explorer context menu by selecting the Execute... menu item (see Figure 3) which will lead to the Job Execution form shown in Figure 7.

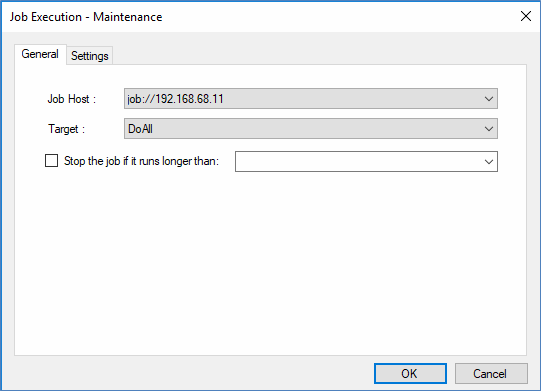

Figure 7 Execute dialog.

The user will have to specify:

The name of the computer - Job host - that will host the simulation. Job host shall be defined as described, before they can be used for executing jobs.
The target or targets from the job file that shall be executed.
Optionally, specify if the job shall have a maximum allowed execution time (after which it will be killed)

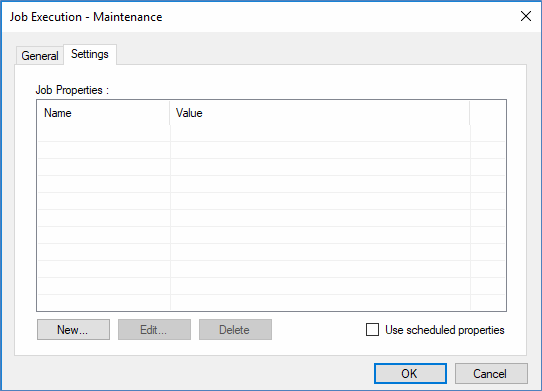

The Settings tab which is shown below in Figure 8 is used for defining job properties. They are key=value type settings for the job, allowing the user to specify a spcific value of a job property for the specific execution of the job (overriding an eventual value set in the job).

Figure 8 Job property definition

Schedule a job¶

Instead of directly executing a job as described in the previous section, a job can be scheduled for execution. This happens very similar to direct execution, through selection of the Create a schedule... menu item on the Job context menu. Should an existing schedule be changed, the user would select the Edit schedule... menu item.

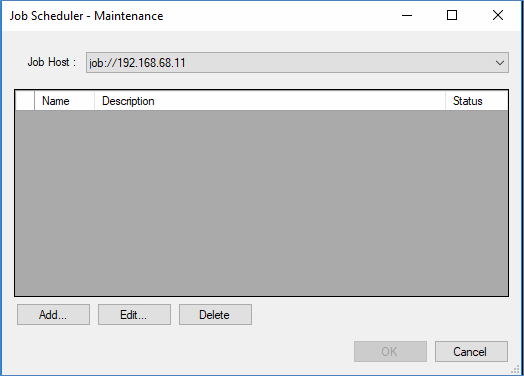

When creating a schedule the user will select the job host to schedule the job in and then Add the schedule, see Figure 9 Create a Schedule. It is only possible to add schedules to jobhosts which do not already have a schedule for the job. To add new schedules for a job already scheduled in jobhost, use Edit Schedule.

Figure 9 Create a Schedule

Note

Note that when scheduling jobs on a remote host, the ServiceHost name should be specified in the DHI.Solutions.JobManager.Config file on the host computer so that it does not use the default value localhost.

A schedule is a specification of how to run the job in a job host at predefined times. Times are give by one or more triggers, which each can be recursive.

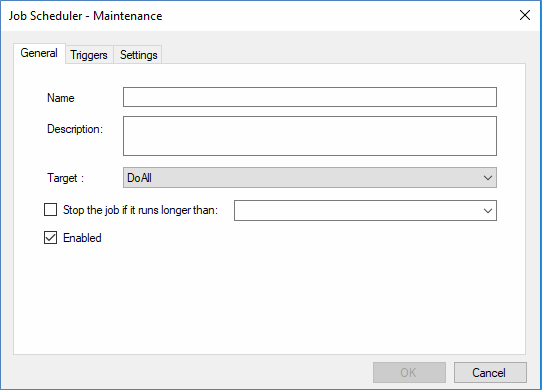

Figure 10 Add Schedule - General

Adding a schedule, the user will be presented with three tab-pages - the same two as used with the direct execution as well as a Triggers tab page. The latter is depicted in Figure 11 below.

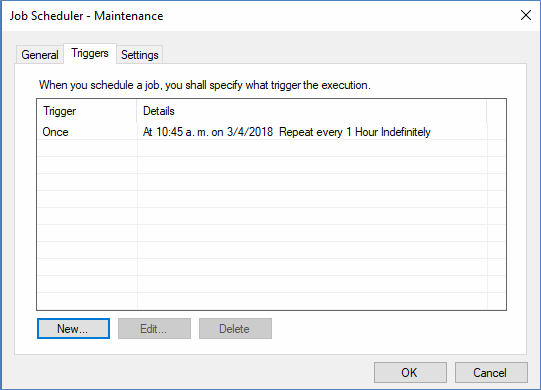

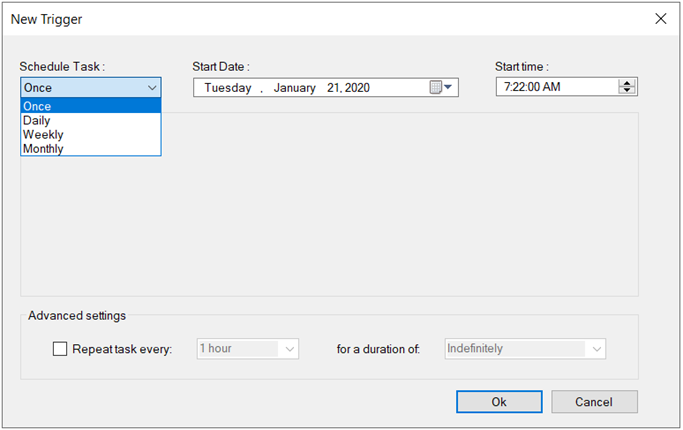

Figure 11 Triggers

Users will apply triggers, which are date and time specifications, for defining when the execution shall take place. Executions can be defined as single or recurrent executions, for example every three hours.

Users can schedule a job to run only once, or on a daily, weekly and monthly basis.

Disable a scheduled job¶

Scheduled executions can be cancelled through the Unschedule... menu item in the Job context menu.

Note

Note that in cases where a job has been scheduled for execution on multiple job hosts, the user will be prompted as to which of the hosts the schedule should be cancelled.

Schedule status information¶

Jobs being scheduled, has an icon showing the status of the schedule.

Status icon	Status	Description
	Enabled	The job is scheduled and enabled on the Computer specified on the job.
	Disabled	The job is scheduled but disabled on the Computer specified on the job.
	Unavailable	The job is scheduled either locally or an a remote host (Computer is specified on the job), but the schedule on the host computer running the job service cannot be found. Either because the host cannot be reached or because the job schedule fo the job cannot be found in the `jobschedules.xml` of the computer of the job service.

Mail notification after running a scheduled job¶

MIKE Workbench allows sending mails when a job has been executed using a job schedule.

Configure SMTP¶

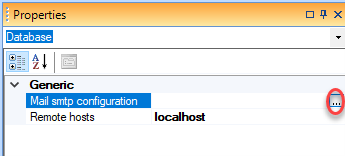

In the property window of the job root node, the SMTP (Simple Mail Transfer Protocol) information for sending mails can be configured.

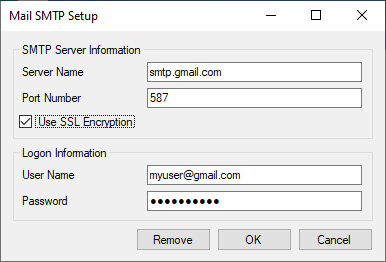

When clicking the eclipse button, the following dialog is shown for configuring SMTP.

Property	Description
Server name	The SMTP server name as defined by the SMTP provider. You can find it consulting the web page of your provider.
Port number	The port number used by the SMTP server for sending mails.
Use SSL Encrytion	Use Secure Socket Layer (SSL) encryption for sending mail. SSL provide a way to encrypt a communication channel between two computers over the Internet.
User Name	The username used to login to the SMTP Server.
Password	The password used to login to the SMTP Server.

Sending mails using job schedules¶

When the SMTP has been configured, it is possible to configure a job schedule to send a mail after the job schedule has completed.

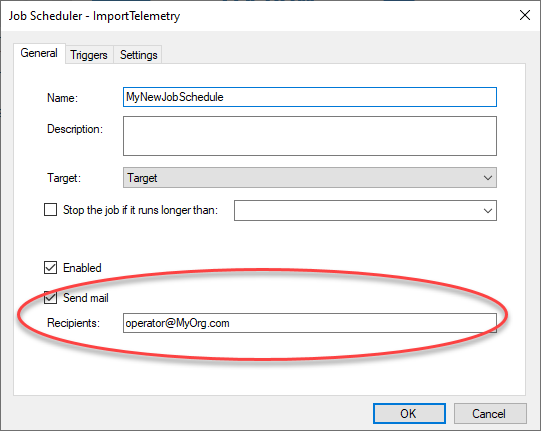

Check the Send mail check box and specify the recipients of the mail being send. When sending to more recipients, separate the mail addresses with a semicolon.

The mail being send will contain the following information:

Subject - The job name and the job host name.
Message Body - The job instance log also found when opening a job instance.

Accessing Remote host/job service details¶

The Job Service in a remote job host may serve multiple MIKE OPERATION databases. Job Explorer only displays information about jobs in the current database.

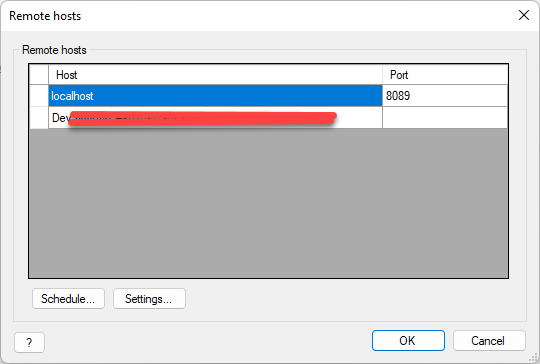

The Remote Host dialog (see Figure 12) enable direct communication with the Job Service and displays details of all the jobs in the Job Service. It also provides possibility to control the Job Service.

Job Service Provider details¶

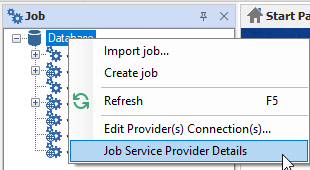

Selecting a job host and clicking the "Schedule" button will display all job schedules in the Job Service of the remote host.

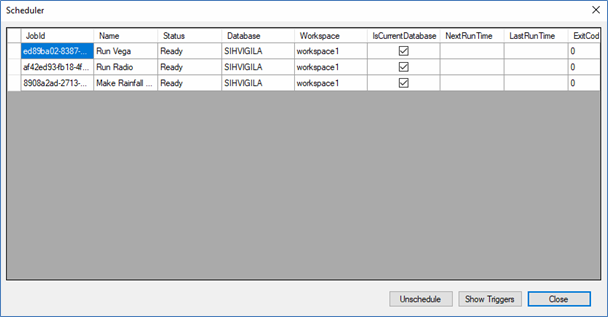

Figure 13 Job Service schedules

From this dialog is is possible to inspect the triggers of a job using the "Show Triggers" button (see Figure 14) as well as "Unschedule" a job (select the whole line in the list) - even if it belongs to a job defined in another database (see Figure 15)

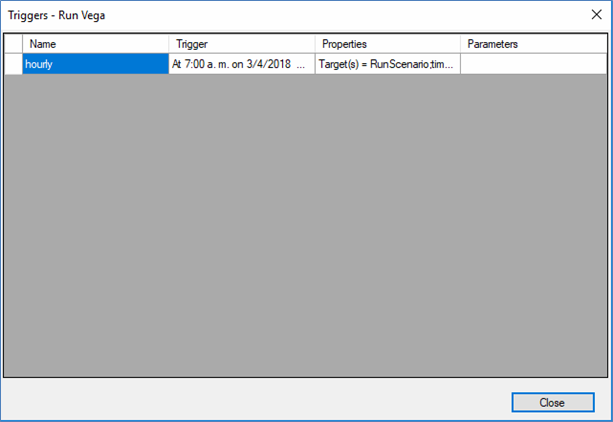

Figure 14 Job triggers

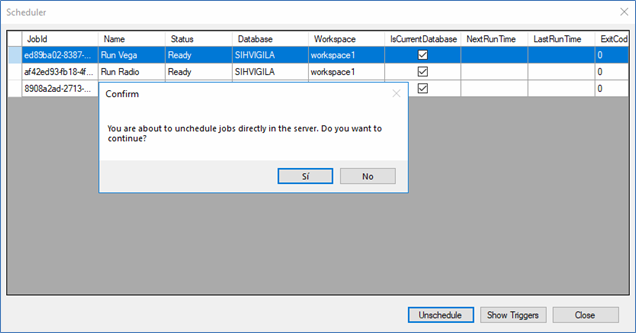

Figure 15 Unschedule in Job Service

Job Servcie Control¶

The "Settings..." button in the Remote hosts dialog opens a small dialog from where it is possible to control the Job Service, see Figure 16.

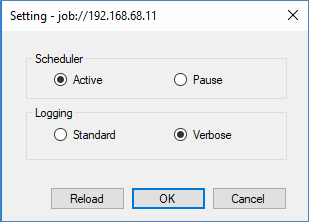

Figure 16 Controlling Job Service

The options are:

Active/Pause
Active is the normal running mode of the Job Serivce. In this mode, it will trigger jobs to be run. Puse will suspend triggering of jobs. This can be useful if extraordinary maintenance of the database is needed without new jobs starting and connecting to it.
Stardard / Verbose logging will instruct how much the Job Service will write to the JobExecution*.log files that it writes. Verbose is useful if extended debugging of behaviour is needed. The log files are usually written in C:\Windows\temp\DHIDSS
Reload. Clicking this button will instruct the Job Service to reload the schedules, thus resetting the schedule details in memory. The schedules are kept in C:\ProgramData\DHI\JobSchedules.xml Note that directory C:\ProgramData is by default hidden, but may be referred directly in Windows Explorer.
