Standard tasks

Table 3 below lists the available standard tasks for the MO Job Service Provider at the time this document was compiled.

Category	Task name	Description
DSS Document	Export Document	Exports a document to disk.
DSS GIS Manager	DFSMerge	Runs the DFSWrite tool.
DSS GIS Manager	Dfsu2Dfs2	Converts DFSU file type formats to DFS2.
DSS GIS Manager	DFSWrite	Runs the DFSWrite tool.
DSS GIS Manager	GFSBuilder	Runs the GFS Builder task.
DSS GIS Manager	GFSDownloader	Runs the GFS Downloader task.
DSS GIS Manager	RasterCalculator	Runs the Raster Calculator tool.
DSS GIS Manager	RasterConversion	Runs the Raster Calculator tool.
DSS GIS Manager	RasterProject	Runs a raster project tool.
DSS GIS Manager	RasterReclassification	Runs the Raster Reclassification tool.
DSS Job	ExitIfRunning	Exit if a job is running.
DSS Job	RunJob	Task for running a job.
DSS Job	TagCurrentJob	Tags current job with a user defined text
DSS Scenario	ApproveSimulation	Approves a simulation.
DSS Scenario	CloneScenario	Clones a scenario
DSS Scenario	SimulationJobInstanceLog	Copy the job instance log to a simulation
DSS Scenario	RenameSimulation	Renames a simulation
DSS Scenario	ExistsSimulation	Checks if a simulation exists
DSS Scenario	GetScenarioInfo	Returns information about a scenario
DSS Scenario	RunScenario	Runs a scenario
DSS Miscellaneous	CheckFTPFile	Check the remote file in the FTP Service.
DSS Miscellaneous	CopyDirectory	Copy Directory is responsible for copying directories.
DSS Miscellaneous	DownloadFiles	Download files.
DSS Miscellaneous	Email	Task for sending of mails.
DSS Miscellaneous	ExecuteSavedTool	Allows saved tools to be used in jobs, removing the need for embedding them in scripts
DSS Miscellaneous	GetCultureName	Gets the current culture.
DSS Miscellaneous	JobHelper	Task for handling job items.
DSS Miscellaneous	MakeZip	Job task for making zip file.
DSS Miscellaneous	SaveBlob	Job task for saving data into blob table.
DSS Miscellaneous	Sleep	Job task for blocking the job for a specified period or until a named event occur.
DSS Miscellaneous	UnzipFiles	Job task for unzipping a zip file.
DSS Script	RunScript	Runs a script Manager
DSS Settings	GetWorkspaceSettings	Job task for getting a workspace setting.
DSS Settings	SetWorkspaceSettings	Job task for setting a workspace setting.
DSS Spreadsheet	SaveSpreadsheetTimeseries	Saves a range from a Manager spreadsheet as a time series
DSS Spreadsheet	UpdateSpreadsheet	Update and get spreadsheet cell values task.
DSS Spreadsheet	CopySpreadsheet	Copies a spreadsheet.
DSS Time	DateTimes	The DateTimes task is handling responsible for construction of date times.
DSS Time	SetTimeStamp	Sets the time stamp on a file or in a registry key
DSS Time	MakeTimeStamp	Makes a time stamp.
DSS Time	GetTimeStamp	Gets a time stamp from a file or a registry key
DSS Time series	AppendTimeseries	Appends one time series to another time series.
DSS Time series	CalculateTimeseriesQuantile	Calculates time series quantiles
DSS Time series	CreateTimeseriesGroup	Creates a time series group
DSS Time series	ExistsTimeseriesGroup	Checks if a time series group exists
DSS Time series	CopyTimeseries	Copies a time series from on group to another
DSS Time series	CopyTimeseriesByGroup	Copies all time series in one group to another group
DSS Time series	CopyTimeseriesByGroupPeriod	Copies a period of all time series in a group to another group
DSS Time series	CopyTimeseriesByPeriod	Copies a period of a time series to another group
DSS Time series	ExistsTimeseries	Checks if a time series exists
DSS Time series	ExportTimeseries	Exports a time series to the file system
DSS Time series	ImportTimeseries	Imports a time series
DSS Time series	InsertTimeseriesValues	Insert values in a time series
DSS Time series	RunToolHierarchy	Runs a tool hierarchy
DSS Time series	MoveTimeseries	Moves a time series from one group to another group
DSS Time series	RenameTimeseries	Renames a time series
DSS Time series	ResampleTimeseries	Resamples a time series
DSS Time series	SmoothTimeseries	Smooth time series task.
DSS Time series	SumTimeseries	Sum time series task.
DSS Time series	TimeseriesStatistics	The time series statistics task will loop through the rows in a specified spreadsheet, and given the column that contains a time series path, it will calculate the specified statistics, and return the result to a specified column in the same spreadsheet.
DSS Time series	RunToolSequence	Runs a tool sequence
DSS Time series	ExistTimeseriesValues	Checks if a time series value exists
DSS Time series	TrimTimeSeries	Class for trimming time series
DSS Workflow	RunWorkflow	Job task to execute a Manager workflow.
External Model	FinalizeModel	The class for finalizing hotstart.
External Model	RunModel	Job task for running a models manually without using the MW scenario manager.
External Model	FinalizeModel	Task for finalizing hotstart.
Maintenance	ManageChangeLog	Task for managing change log entries.
Maintenance	ManageInitialConditions	Task to clean initial conditions before specified date from the database.
Maintenance	ManageEventLog	Task for managing the event log.
Maintenance	ManageJobLogs	Helps to manage job logs by deleting the job logs before specified date from the database It also gives an option to export the job logs being deleted to an export folder for archiving.
Maintenance	ManageSimulations	Helps to manage simulations by deleting the simulations before specified date from the database. It also gives an option to export the simulations being deleted to an export folder for archiving.
Maintenance	RemoveRasterTimeSteps	Removes time steps from a raster
Maintenance	RemoveTimeseries	Removes a time series
Maintenance	RemoveTimeseriesGroup	Removes a time series group
Maintenance	RemoveTimeSeriesValues	Removes time steps from a time series. “Begin” and “End” and end dates can be specified.
Maintenance	Vacuum	Task for doing a vacuum on the PostgreSQL database of the connection
MSBuild Task	CallTarget	Invokes the specified targets within the project file.
MSBuild Task	CombinePath	Combines the specified paths into a single path.
MSBuild Task	ConvertToAbsolutPath	Converts a relative path, or reference, into an absolute path.
MSBuild Task	Copy	Copies files on the file system to a new location.
MSBuild Task	CreateProperty	Populates properties with the values passed in. This allows values to be copied from one property or string to another.
MSBuild Task	Delete	Deletes the specified files.
MSBuild Task	Error	Stops a build and logs an error based on an evaluated conditional statement.
MSBuild Task	Exec	Runs the specified program or command with the specified arguments.
MSBuild Task	FindInList	In a specified list, finds an item that has the matching itemspec.
MSBuild Task	FindUnderPath	Determines which items in the specified item collection have paths that are in or below the specified folder.
MSBuild Task	MakeDir	Creates directories and, if necessary, any parent directories.
MSBuild Task	Message	The Message task allows MSBuild projects to issue messages to loggers at different steps in the build process.
MSBuild Task	OnError	The OnError task causes one or more targets to execute, if the ContinueOnError attribute is false for a failed task.
MSBuild Task	ReadLinesFromFile	Reads a list of items from a text file.
MSBuild Task	RemoveDir	Removes the specified directories and all of its files and subdirectories.
MSBuild Task	RemoveDuplicates	Removes duplicate items from the specified item collection.
MSBuild Task	Warning	Logs a warning during a build based on an evaluated conditional statement.
MSBuild Task	WriteLinesToFile	Writes the paths of the specified items to the specified text file.
Time Series Factory	Db2File	Task responsible for extracting data from the database into files on the disk. The main area for configuration is a spreadsheet.
Time Series Factory	File2Db	Task responsible for extracting data from files into files into the database. The main area for configuration is a spreadsheet.
Time Series Factory	TimeSeriesFactory	The TimeSeriesFactory task is responsible for construction time series. It works in conjunction with File2Db and Db2File.

Table 3 Task descriptions

DSS GIS Manager

Dfsu2Dfs2

Purpose:

Converts DFSU file type formats to DFS2.

Description:

Converts DFSU file type formats to DFS2.

Properties:

Property	Description
Dx	Gets or sets the Dx. If not specified Dx will be calculated by the x-extent of the input DFSU file divided by J.
Dy	Gets or sets the Dy. If not specified Dy will be calculated by the y-extent of the input DFSU file divided by K.
Dz	Gets or sets the dz. If not specified Dz will be set to 1.
GridOriginX	Gets or sets the latitude. If not specified the y-origin of the input DFSU file will be used.
GridOriginY	Gets or sets the latitude. If not specified the y-origin of the input DFSU file will be used.
J	Gets or sets the J. If not specified K will be used.
K	Gets or sets the K. If not specified J or 1000 will be used.
L	Gets or sets the L. If not specified the number of layers of the input DFSU file will be used.
LandValue	Gets or sets the land value. Zero by default.
OutputDfs2FileName	Gets or sets the output DFS2 file name. If not specified the input DFSU filename will be used.
Projection	Gets or sets the projection. If not specified the projection of the input DFSU file will be used.
Rotation	Gets or sets the rotation. Zero by default.

DFSWrite

Purpose:

Writes DFS2 files from rasters in the database.

Description:

Writes DFS2 files from rasters in the database.

Properties:

Property	Description
FilePath	Gets or sets the path of the file to export
InputRaster	Gets or sets the input Raster. raster path or memory:[name].
ClearOutputObject	Gets or sets ClearOutputObject. memory:[name].
CoordinateSystem	Gets or sets the Coordinate system as string
EumItem	Gets or sets the MikeZero eum item for data export. If empty - eum item taken from temporal raster
EumUnit	Gets or sets the MikeZero eum item unit for data export. If empty - eum item taken from temporal raster.
ItemName	Gets or sets the MikeZero item name for data export. If empty - eum item taken from temporal raster.
StartTime	Gets or sets the start time for raster to be saved into DFS2. If empty all time steps exported.

GFSBuilder

Purpose:

Writes DFS2 files from .grb2 files in a folder on disk.

Description:

Writes DFS2 files from .grb2 files in a folder on disk.

Properties:

Property	Description
Calculations	Gets or sets the calculations to apply. The order of the calculations is significant, and will be applied in order to the variables.
EumTypes	Gets or sets the EumTypes to apply. For a list of all available EumTypes, right-click on Timeseries Manager database and choose Add new time series, then find the EumType in the Variable dropdown.
EumUnits	Gets or sets the EumUnits to apply. For a list of all available EumUnits, right-click on Timeseries Manager database and choose Add new time series, then find the EumUnit in the Unit dropdown.
GFSFolder	Gets or sets the GFS folder. This folder will keep all downloaded GFS files, because files can be reused on subsequent runs.
Offset	Gets or sets the offset property in hours (positive or negative). This integer will be added to now or PackageStart in order to determine the final start date.
PackageLength	Gets or sets the total package length in hours. Common examples are 24 or 12.
ResultPath	Gets or sets the path of the final result dfs2 file. This file will be deleted if it exists.
UseNow	Gets or sets a value indicating whether now should be used as the package start date. The current time will be converted to UTC.
Variables	Gets or sets the variables to process. The order of the variables must match the order of other properties eg: calculation; units.
PackageStart	Gets or sets the package start property (UTC) in format yyyyMMdd eg: 20170827. This will be used to determine the package start date. Can be overidden by UseNow.

GFSDownloader

Purpose:

Downloads and imports GFS files from NCEP.

Description:

The Global Forecast System (GFS) is a weather forecast model produced by the National Centers for Environmental Prediction (NCEP). Dozens of atmospheric and land-soil variables are available through this dataset, from temperatures, winds, and precipitation to soil moisture and atmospheric ozone concentration. The entire globe is covered by the GFS at a base horizontal resolution of 18 miles (28 kilometers) between grid points, which is used by the operational forecasters who predict weather out to 16 days in the future. Horizontal resolution drops to 44 miles (70 kilometers) between grid point for forecasts between one week and two weeks.

Properties:

Property	Description
BoundingBox	Gets or sets the bounding box in the format [leftlon],[rightlon],[toplat],[bottomlat] e.g. Eastern Europe's Black Sea would be similar to 25.94,44.08,47.52,39.5
ForecastLength	Gets or sets the total forecast length in hours. Common examples are 120 or 192. Note that the time step is 1h during the first 120 hours, 3h in the following 120-240h and 12h up to 384 hours.
GFSFolder	Gets or sets the GFS folder. This folder will keepall downloaded GFS files, because files can be reused on subsequent runs.
KeepDays	Gets or sets the number of days of GFS files to keep. Must be between 0 and 11. Eg: if set to 5, then any file with a forecast time older than 5 days will be deleted.
Offset	Gets or sets the offset property in days. This integer will be added to now or ForecastDate in order to determine the final forecast date.
UseNow	Gets or sets a value indicating whether now should be used as the forecast date. The current time will be converted to UTC.
Variables	Gets or sets the variables to download. When changing this, consider that the GFS files you previously downloaded will not reflect these changes, so building a forecast from older data may be problematic (see variables in the table below).
Cycle	Gets or sets the forecast cycle. Should be 0, 6, 12, or 18 (UTC). If -1, the latest cycle will be used.
ForecastDate	Gets or sets the forecast date property (UTC) in format yyyyMMdd eg: 20170827. This will be used to determine the forecast publish date. Can be overidden by UseNow.
ImportTo	Gets or sets the GIS Manager Group where the GFS GISManagerGroup

Variables

Variable	Code	Level
Pressure reduced to MSL	PRMSL	Mean sea level
u-component of wind ground	UGRD	10m above
v-component of wind ground	VGRD	10m above
Total precipitation	APCP	Entire atmosphere
Total cloud cover	TCDC	Surface
Temperature	TMP	2m above ground

RasterCalculator

Purpose:

Runs raster statistics on a specific rasters in the database using the Raster Calculator tool.

Description:

Runs raster statistics on a specific rasters in the database using the Raster Calculator tool.

Properties:

Property	Description
Formula	Gets or sets the formula to apply for the calculation. Use syntax normally found in spreadsheets, but instead of cell references.
InputRaster	Gets or sets the input Raster. raster path or memory:[name].
OutputRaster	Gets or sets the output Raster. raster path or memory:[name].
ClearOutputObject	Gets or sets ClearOutputObject. memory:[name].

RasterConversion

Purpose:

Converts rasters to specific file type.

Description:

Converts rasters to specific file type.

Properties:

Property	Description
FilePath	Gets or sets the FilePath.
FileType	Gets or sets the FileType(GRIB or NetCdf).
OutputRaster	Gets or sets the output Raster. raster path or memory:[name].
Variable	Gets or sets the variable which to convert.
CoordinateSystem	Gets or sets the Coordinate system as string.

RasterProject

Purpose:

Re-projects rasters in the database to another projection.

Description:

Re-projects rasters in the database to another projection.

Properties:

Property	Description
CoordinateSystem	Gets or sets the coordinate system to project to.
InputRaster	Gets or sets the input Raster. raster path or memory:[name].
InterpolationMethod	Gets or sets the interpolation method to use (NearestNeighbor, Bilinear or Cubic).
OutputRaster	Gets or sets the output Raster. raster path or memory:[name].
RasterProcessor	Gets or sets the raster processor to use when executing the tool. PostGIS Raster Processor is the default processor. Other processors can be added and used by the tool.
ClearOutputObject	Gets or sets ClearOutputObject. memory:[name].

RasterReclassification

Purpose:

Reclassifies rasters using the Raster Reclassification tool.

Description:

Reclassifies rasters using the Raster Reclassification tool.

Properties:

Property	Description
InputRaster	Gets or sets the input Raster. raster path or memory:[name].
MappingType	Gets or sets a value of defining the type of mapping. If single value, values are mapped one to one. Otherwise, a range of values is mapped to a new value.
OutputRaster	Gets or sets the output Raster. raster path or memory:[name].
ClearOutputObject	Gets or sets ClearOutputObject. memory:[name].
KeepUnmappedValues	Gets or sets a value indicating whether the unmapped values are kept.
Mapping	Gets or sets the mapping of values from the original raster to the reclassified raster. Missing or No Data values can be represented by using the string values null, nothing, nodata, novalue, missing, missingdata, or missing value. These can be used as either the orginal value or the new value.

DSS Miscellaneous

CopyDirectory

Purpose:

This task copied a directory of files, from Source directory, to Destination as specified. If DeleteBeforeCopy is set to true, then the destination directory is deleted before the copy occurs. This recursively copies subfolders too.

Properties:

Property	Description
SourceDirectory	Source directory
DestinationDirectory	Destination directory
DeleteBeforeCopy	Delete Destination directory before copying current Source data

JobHelper

The JobHelper is a dedicated task to simplify working with job items (see the Use of job items section earlier in this document), by providing options for e.g. extracting specific item elements.

Task parameter	Type	Description
Action	String, required	Defines the action to be performed by the JobHelpertask.
InputItems1	Items, required for a subset of the actions	See usage in Table 5
InputItems2	Items, required for a subset of the actions	See usage in Table 5
Position	String, required for a subset of the actions	See usage in Table 5
OutputString	String, output	See usage in Table 5
OutputItems	Items, output	See usage in Table 5
Separator	String	See usage in Table 5

Table 4 JobHelper task parameters

Action	Description	Parameter use
GetItem	Gets the item at the specified position.	InputItems1 Position OutputString
GetItemCount	Gets the number of elements in the item list	InputItems1 OutputString
GetLastItem	Gets the last element in the item list	InputItems1 OutputString
Rem	Remove duplicate items oveDuplicates	InputItems1 OutputItems
GetCommonItems	Gets an item list with the common elements	InputItems1 InputItems2 OutputItems
GetDistinctItems	Gets an item list with the distinct elements	InputItems1 InputItems2 OutputItems
StringToItemCol	Convert a string to an item collection	InputString Separator OutputItems
ItemColToString	Combine an item collection into a string	InputItems1 Separator OutputString

Table 5 JobHelper action values

DSS Time handling

DateTimes

Purpose:

Set date and time

Description:

If UseNow is true, the DateTime will be set to the current date and time. Else, the DateTime specified by the property will be offset by the number of days as specified by the Offset property.

Properties:

Property	Description
DateTime	Date and time specified to be used
UseNow	Boolean to state if use current date and time
Offset	Number of days to offset set DateTime
Output	Output

External scenario execution tasks

In those cases where the Scanario Manager does not support the functionality required, the external scenario executions tasks can be used. The tasks with primary focus on model execution are described in below table where they are listed in the order they are typically used. These tasks allow very flexible, easy and transparent configuration of the model execution.

Name	Description
InitialiseHotstart	This task prepares model files including identifying and copying hotstart files as well as modifying times in input files.
RunModel	This task runs models and captures output information from the models.
FinalizeHotstart	This task archives model runs for use by InitialiseHotstart.
CopyDirectory	Copies a directory recursively.
DateTimes	Provides the ability to construct date times based on input date times or the current time and allows offsetting the date times.

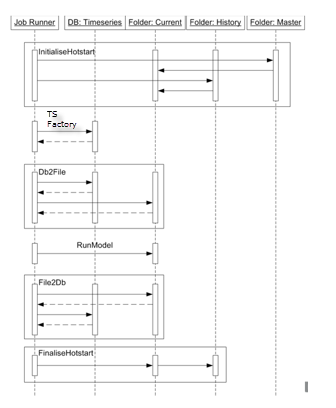

The intended model execution workflow is illustrated below. Notice how the Time series factory task can be used to prepare input time series before running the model.

1. The Job runner executes the job.
2. The database holds contains all the time series.
3. Current folder contains the model that shall be executed.
4. The History folder contains the historical model that provides the hotstart files.
5. The Master folder contains the model template.

The detailed documentation for the External scenario excution tasks is provided below.

InitializeModel

Purpose:

This task initialises the model and hotstart conditions.

Description:

The Models folder structure contains three folders; Current, Master and History, sitting in the root folders structure. Current folder is wiped clean, all data is deleted. Absolute all model data is copied from Master to Current

Hotstart files are copied from History to Current. The files come from the previous job runs. In the Current folder, the hotstart files are set to work with the model, with the date time values set according to job setting from the Initialise target.

Properties:

Property	Description
Folder	Sub path to model folder and files. E.g C:\data\MIKE IPO Software and Demo data\IRMA\ForecastModelHD
StartTimes	Array of StartTimes in the format yyyy-MM-dd HH-mm-ss
EndTimes	Array of EndTimes in the format yyyy-MM-dd HH-mm-ss
SimulationFileNames	List of model Simulation file names for hotstart.
ModelTypes	List of supported Model Types to initialize. MIKE11 MIKESHE AutoCAL MOUSE MIKE21 MIKE21FM MIKE21SW
CurrentFolderName	Folder name under the specified Folder to use as working folder.
ForceHotstartTimes	Boolean to ensure Start and End times are used.
ForceHotstartTimesList	Boolean list to ensure Start and End times are used.
HistoryTime	History time the overwrites the first start time to identify the history folder. Use the format yyyy-MM-dd HH-mm-ss.
HotStart	Specify If the hot starting should be done.
HotstartElements	Result file for input to Hotstart
HotStartFolder	Folder to initialize it's hotstart.
NoHotstartTimeStep	Integer specifying the time step number to use if no host start file is available for a time step.
ResultElements	Result output files from Hotstart
TextLog	Write log into a text file InitializedHotstart.Log.
TimeOfForecast	Date time containing the Time Of Forecast (yyyy-MM-dd HH-mm-ss)

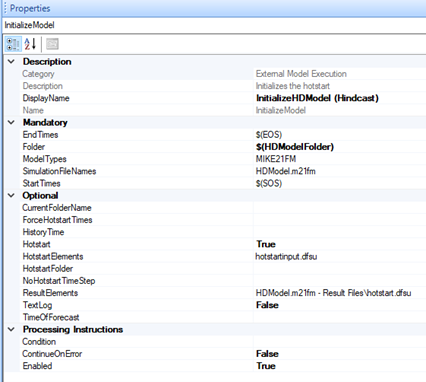

Sample properties, where EndTimes and folder is taken from Job properties.

RunModel

Purpose:

Run hydraulic models and optimiser.

Description:

This task executes the models. The task calls the executable for each when they are required to run.

Properties:

Property	Description
SimulationFileName	Name of simulation file for model and or optimiser.
ModelType	Type of Model or Optimiser. The supported types of models are listed below. MIKE11 MOUSEHD MOUSERUNOFF MIKESHE AutoCAL MIKE21 MIKE21FM MIKE21SW MIKEFLOOD MIKEFLOODGPU
Run64Bit	Run the model in 64 bit mode (default=True). True will tell the engine to look for the executable in the x64 subfolder.
TextLog	Write log into a text file RunModel.Log.

Sample properties. $(HDModelFolder) is a job property defined on the job.

FinalizeModel

Purpose:

Finalise model archiving any hotstart files necessary for subsequent model runs

Description:

The Current folder is copied to the new History folder, which is DateTime stamped by StartTime and EndTime.

This will delete all files and sub folders in the new history folder, determined by entries in CleanupElements, and excluding what is specified in CleanupExcludeElements.

This will than delete the History Folder, if it contains more files and folders specified by the number Keep input property.

Properties:

Property	Description
Folder	Sub path to model folder and files
StartTime	Start DateTime for time stamping new history folder
EndTime	End DateTime for time stamping new history folder
Success	Value indicating whether finalizing hotstart was a success.
Keep	Number of days to keep hotstart files for
CleanupElements	List of Elements to Clean up
CleanupExcludeElements	List of Elements to exclude in cleanup
DestinationHistoryFolder	Output folder is a sub folder of the specified Folder named with the start and endtime.
TextLog	Write log into a text file FinalizeModel.Log.

Sample properties. Job properties are defined on the job for EndTime,Folder and StartTime.

Maintenance

ManageChangeLog

Purpose:

Manages the change log of database.

Description:

Able to delete and/or export the change log.

Properties:

Property	Description
DeleteLog	Specifies if the change log should be deleted.
End	End date of the query of change logs to be handled.
Export	Indicate if the change log should be exported.
ExportFile	The file to export the change log to. If the export file is not specified, a file will be written ito the temporary DHIDSS folder %temp%\DHIDSS. This folder will be cleanup, so that the export files cannot be found.
Start	Start date of the query of change logs to be handled.

ManageEventLog

Purpose:

Manages the event logMaintain simulations of the databasea scenario.

Description:

The ManageEventLog job task is able to export and/or delete events in the events table of the MIKE OPERATIONS database.

Will delete simulations of a scenario.

Properties:

Property	Description
DeleteLog	Specifies if the event log should be deleted.
EndScenario	End date of the query of event log to be handled.The id or full path to the scenario to manage.
EventType	A comma separated string of event types to delete. The event types are specified as an integer values (e.g. 1,2). This field is optional. If not specified, all event types will be managed. Event Types: Information = 1 Warning = 2 Error = 3 Critical = 4 AuditSuccess = 5 AuditFailure = 6
Export	IndicateValue indicating if the event logsimulations of the scenario should be exported.
ExportFileExportFolder	The file to export the event log to. If the export file is not specified, a file will be written ito the temporary DHIDSS folder %temp%\DHIDSS. This folder will be cleanup, so that the export files cannot be found.Folder where the simulations are exported to if Export=True.
ForceDelete	Delete simulations even if the status of a simulation is Running.
OlderThanDaysOlderThan	Specified a number of days that events should be older than. Events older than a specified value, will be managed when start date is minimum value and end date is maximum value. This means that start and end dates cannot be specified at the same time as specifying OlderThanDays.Will delete simulations older than a specied number of hours.
Start	Start date of the query of event logs to be handled.

Manage Simulations

RemoveRasterTimeSteps

Purpose:

Removes raster time steps from a raster.

Description:

Removes time steps from a raster. The raster should be either

Properties:

Property	Description
Raster	The id or full path to the raster to maintain.
Begin	The start date from where to delete raster time steps.
End	The end date to where to delete raster time steps .

RemoveTimeSeriesValues

Purpose:

Maintain time steps on in a time series.

Description:

Removes time steps from a time series. Begin and End and end dates can be specified.

Properties:

Property	Description
TimeSeries	Id or full path to the time series to manage.
Begin	Start date from where to delete time steps of the time series.
End	End date to where to delete time steps of the time series.

Vacuum

Purpose:

Reclaims storage occupied by dead tubles in the PostgreSQL database.

Description:

Task for doing a vacuum on the PostgreSQL database of the connection.

VACUUM reclaims storage occupied by dead tuples. In normal PostgreSQL operation, tuples that are deleted or obsoleted by an update are not physically removed from their table; they remain present until a VACUUM is done. Therefore it's necessary to do VACUUM periodically, especially on frequently-updated tables.

If no Table is specified, VACUUM processes every table in the current database. Specifying the Table parameter, VACUUM processes only that table.

Plain VACUUM (without FULL) simply reclaims space and makes it available for re-use. This form of the command can operate in parallel with normal reading and writing of the table, as an exclusive lock is not obtained. However, extra space is not returned to the operating system (in most cases); it's just kept available for re-use within the same table. VACUUM FULL rewrites the entire contents of the table into a new disk file with no extra space, allowing unused space to be returned to the operating system. This form is much slower and requires an exclusive lock on each table while it is being processed.

VACUUM FULL is only needed when you have a table that is mostly dead rows i.e, the vast majority of its contents have been deleted. It should not be used for table optimization or periodic maintenance, as it's generally counterproductive. In most cases the freed space will be promptly re-allocated, possibly increasing file-system-level fragmentation and requiring file system space allocations that're slower than just re-using existing free space within a table.

When you run VACUUM FULL on a table, that table is locked for the duration of the operation, so nothing else can work with the table. VACUUM FULL is much slower than a normal VACUUM, so the table may be unavailable for a while.

Properties:

Property	Description
AnalyseMode	Specifies if the vacuum should be run in analyse mode. Updates statistics used by the planner to determine the most efficient way to execute a query. After adding or deleting a large number of rows, it might be a good idea to issue a VACUUM ANALYZE command for the affected table. This will update the system catalogs with the results of all recent changes, and allow the PostgreSQL query planner to make better choices in planning queries.
FullMode	Specifies if the vacuum should be a FULL vacuum. When doing a full vacuum without using the Table option, all tables of the database is locked. It is remmended to do a FULL VACUUM on tables being frequently-updated. The following tables are know to be frequently-updated updated.
Table	Single table to vacuum. If left empty, all tables of the database is vacuumed.

Time series factory tasks

The purpose of the three time series factory tasks is to allow the user to construct new time series, either from scratch or based on existing time series, by using on a number of built-in operations. The time series factory task suite consists of three tasks that are typically configured in a shared spreadsheet. The functionality is summarised below.

Name	Description
TimeseriesFactory	This task constructs time series for the models based on configuration stored in spreadsheets using a variety of different rules.
Db2File	This task extracts time series from the database and updates input files accordingly. It uses configuration stored in the same spreadsheets as the Hierarchy task.
File2Db	This task works in the opposite way of the Db2File and extracts model results from res11 and dfs0 files and stores it in the data base. The configuration is stored in the same type of spreadsheets as the Db2File and Time series factory tasks.

Time series factory

Purpose:

Prepare time series in correct structure for use in hydraulic models. The structure format is defined in spreadsheets, and the task reads in these spreadsheets, to produced input time series for the models, to ensure they can be processed by the models.

Description:

The Time series factory functionality allows for construction of time seires in the database using a variety of different methods. The time series and methods to use on the time series are defined in spreadsheets in the spreadsheet manager and comes in column pairs where the first column specifies one to many metohds to apply to the time series defined in the second column. Processing this time series results in one time series segment to which the result of processing of subsequent column pairs is appended.

The spreadsheets are normally used in conjunction with the File2Db and Db2File that occupy column A through E where column D is the resulting time series created by the Timeseries factory task.

The following methods are available:

Method	Description
ExtrapolateFirst(DateTimeX)	This method copies the first value in the time series backwards to DateTimeX unless a value already exists at that point in time or earlier. If the time series is empty, the method does nothing. The new value gets the date time DateTimeX.
ExtrapolateLast(DateTimeX)	This method copies the last value in the time series forwards to DateTimeX unless a value already exists at that point in time or later. If the time series is empty, the method does nothing. The new value gets the DateTimeX.
None	This method simply passes through the time series, effectively operating like a copy
InsertValueAt(DateTimeX, value)	Inserts a value at the specific point in time unless the time series already covers this point in time. If the time series is empty, the value is always inserted. The value is either a double or null.
ExtractPeriod(DateTimeX, DateTimeY)	Extracts all values in the period defined. Use >= for both date times)
ExtractPeriod(DateTimeX, DateTimeY, true, false)	Extracts all values in the period defined. Allows specifying if the = should be used in >=
DeleteFrom(DateTimeX)	Copy timeseries, omitting values from specified date time and onwards
DeleteTo(DateTimeX)	Copy timeseries, omitting values up to and including specified date time
Multiply(value)	Multiply all values in timeseries by value specified.
Offset(X)	Offset every point in timeseries by length of hours specified. This basically adds time to every point in the timeseries, thereby time shifting the timeseries.
Replace(oldvalue, newvalue)	Replaces any occurrence of oldvalue in the specified timeseries, with the new value.
Min	Input source time series are concatenated together, and the resulting time series for use by the models contains a minimum value for each and every time series point that exists in the concatenation of the source time series.
Max	Input source time series are concatenated together, and the resulting time series for use by the models contains a maximum value for each and every time series point that exists in the concatenation of the source time series.
Add	Multiple time series are timestep added together, the resulting time series contain an addition for each time step in all the input time series, timesteps. The start of the resulting time series is equal to the maximum of all input starts, and conversely the end is the minimum of all input end. Interpolation is used to determine input values so that each and every date time between start and end are added. Please note that is this method is used in conjunction with other methods, then this one must be used first, as it takes multiple time series as input arguments. Also appends results of previous processing or earlier method time series column pairs. Hence this is used to allow hierarchy methods to prepare time series before being added.
DropBeforeFirst(value)	This method adds a time step to the time series, one second before the first time step present, and with the value specified as input to the method
DropHoursAfter(hours, value)	This method adds a time step to the time series after the last time step present. The method takes two arguments, first being number of hours the insert the time step after the current last time step, and the second argument is the value to be inserted.
DropAfterLast(value)	This method add a time step to the time series, one second after the last time step present, and with a value specified as input to the method.
DropInGaps	This method adds two time steps between any gap, the gap and value to be added in the time step is specified as input to the methods, and the time steps are 1s after first value and 1s before second value in the gap, to fill in the gap.
CreateNew(valuetype, xaxistype, xaxisunit, yaxisvariable, yaxisunit)	Allows creation of empty time series. An example is CreateNew(Mean_Step_Accumulated,Non_Equidistant_Calendar,second,Pumping Rate,m^3/yr)
MultiplyMonths(J, F, M, A, M, J, J, A, S, O, N, D)	Multiplies fators to months. The factors use period as comma separator

The task will proceed and process all rows in all sheets even though there are errors. All errors are logged to the Job Manager output as well as added to a list. When the task terminates, it should fail if this list contains entries.

Properties:

Property	Description
Spreadsheet	Name of spreadsheet
Worksheets	List of worksheet names to traverse
Replace	Replace allows for the definition of statements that are replaced into any cell value. The parameters takes the form of e.g. Val1=Val2;Val3=Val4 wich means that all occurences of Val1 will be replaced wirg Val2. Likewise for Val3 that is replaced with Val4
ExcludeQuality	Numbers to filter out of input timeseries. This represents timeseries values with bad quality, and having the flag set

Db2File

Purpose:

Export timeseries to file

Description:

This task export timeseries to dfs0 files. This task reads through a spreadsheet, to obtain the specification for timeseries to export, resulting dfs0 files to be generated and contains important data unit and type information for source and destination.

Properties:

Property	Description
Spreadsheet	Spreadsheet containing export specifications.
Worksheet	Worksheet in spreadsheet containing export specifications
Folder	Destination File for timeseries
Replace	Replace allows for the definition of statements that are replaced into any cell value. The parameters takes the form of e.g. Val1=Val2;Val3=Val4 which means that all occurences of Val1 will be replaced wirg Val2. Likewise for Val3 that is replaced with Val4

File2Db

Purpose:

Import timeseries from file.

Description:

This task imports timeseries from dfs0 files. This task reads through a spreadsheet, to obtain the specification for timeseries to export, resulting dfs0 files to be generated and contains important data unit and type information for source and destination

Properties:

Property	Description
SpreadsheetName	Spreadsheet containing import specifications
WorksheetName	Worksheet in spreadsheet containing import specifications
Folder	Source File for timeseries
StartTime	Import data not before this data and time
EndTime	Import data not after this date and time
Replace	Replace allows for the definition of statements that are replaced into any cell value. The parameters takes the form of e.g. Val1=Val2;Val3=Val4 which means that all occurences of Val1 will be replaced wirg Val2. Likewise for Val3 that is replaced with Val4

Run Scenario Task

Run Scenerio

Purpose:

Run scenario task.

Description:

This task can be created refer to the following screen shot:

Properties:

Property	Description
Display name	Display name of the task
Scenario	Gets or sets the scenario id or fully qualified path
AfterOutputCreated	Gets or sets the value of after output delegate - a script to run after output has been retrieved from the adapter. The format is either scriptpath or scriptpath@arguments, where arguments represents a list of arguments to the script starting from the second argument (the first is always the IAdapter). Arguments are separates by a vertical bar (|), e.g. /myascript@1|some text
AfterSimulationScript	Gets or sets the value of after simulation delegate - a script to run after the model has run. The format is either scriptpath or scriptpath@arguments, where arguments represents a list of arguments to the script starting from the second argument (the first is always the IAdapter). Arguments are separates by a vertical bar (|), e.g. /myascript@1|some text
Approve	Gets or sets a value indicating whether to simulation should be approved or not
BeforeSimulationScript	Gets or sets the value of beforesimulation delegate - a script to run before the model is started. The format is either scriptpath or scriptpath@arguments, where arguments represents a list of arguments to the script starting from the second argument (the first is always the IAdapter). Arguments are separates by a vertical bar (|), e.g. /myascript@1|some text
EndTime	Gets or sets the value of end date.
OutputTimeseriesDisposition	Gets or sets the value of output timeseries disposition.
OutputTimeseriesGroup	Gets or sets the value of output timeseries group.
StartTime	Gets or sets the value of Start date.
TimeOfForecast	Gets or sets the value of time of forecast.
Condition	Optional attribute. The condition to be evaluated.
ContinueOnError	Optional attribute. A Boolean attribute that defaults to false if not specified.
Enabled	To enable or disable the task.

How to set up an after/before simulation script in Run Scenario Task

The before simulation script as the after simulation script in the RunScenario Task in the job manager takes at least (the adpater object) but typically two arguments. The first agrument is always the adapter object, the second is of type object and is used to parse additional paramaters. These additional parameters are sepcified in the job task behind the script separated by vertical bars (|). For example: testing@par1|par2|par3

The script testing needs a definition such as:

def testing(adapter, args):
    <Script>
    <Author>admin</Author>
    <Description>Run Scenario pre-processing script to do something</Description>
    <Parameters>
        <Parameter name="adapter" type="IAdapter">Handle to the Generic Adapter at runtime.</Parameter>
        <Parameter name="args" type="object">List of strings.</Parameter>
    </Parameters>
    </Script>
