Working with the Map data view

The map data view provides functionality for navigation and layout. All navigations options are available in the toolbar in the top of the GIS data view and layout options are available through the property control. Some examples on Map view functionality is provided below.

Adding data to a Map data view

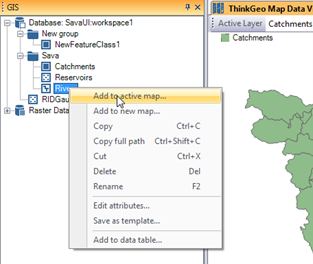

To add new data to a map view right-click on a feature class or raster and choose Add to New Map... from the context menu.

To add more data to an existing map data view choose Add to active map...

Feature classes are now visualized as feature layers in the Map data view with a predefined simple style.

Rasters are added to a raster layer using a simple gradient fill style.

Map navigation and properties

Basic navigation functionality such as zoom in and out, pan is located in the Map data view toolbar.

In case if active layer is temporal the time based animation is available. If map contains more temporal layers animation is guided by time steps of active layer and in all other layer the closes smaller step is selected. Animation supports common animation controls and selection of the one time step from combo. Animation dialog is modal, it is not possible to work with the map using zoom….

The Select object mode allows for choosing objects such as the map data view itself or the feature layer legend.

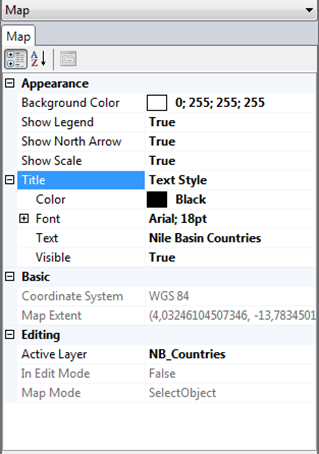

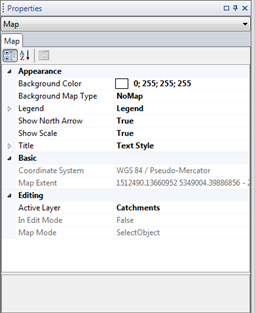

Clicking somewhere on the map data view displays the general Map properties.

These allows for modifying back-ground color, adding titles, scales, north arrow and display some of the non-editable map properties (e.g. coordinate system).

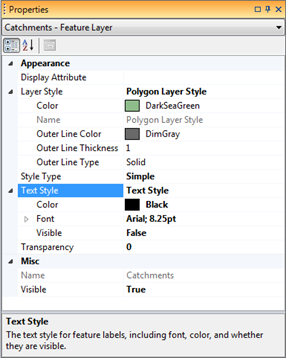

Clicking on a Feature layer in the legend displays the associated properties of that particular feature layer including the styles to use when drawing the feature layer.

Each style provides various options for changing the appearance of how a feature class is displayed including layout, color coding, text labeling etc.

Please refer to Map Layout Options for details.

Map Layout options (vector data)

Feature classes may be presented in the map data view using feature class attribute values to create different types of color scales and legends.

To modify the appearance of a feature layer click select the relevant legend in the map data view

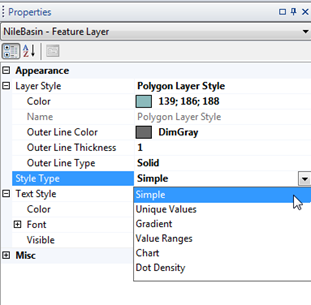

The associated property dialogue provides a number of options for changing the appearance of a feature layer.

The style type contains a list of different feature layer styles. There are different style parameters for different styles definition. Style definition follow common definitions used in GIS systems.

Attribute used in layer style definition needs to be selected.

Following styles are available. Some of them only for attributes of the type number.

• All geometry types
  • Simple
  • Unique value
  • Gradient
  • Value ranges
  • Chart
• Point
  • Isoline
• Polygon
  • Dot Density

Clicking the Map data view provides a limited number of general map options such as North arrow, Scale and Title.

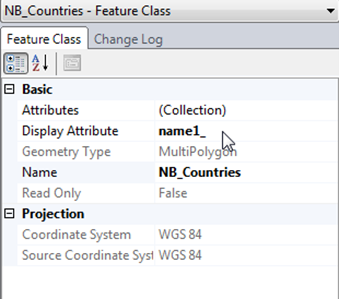

Clicking a specific feature class in the tree view opens the feature class properties. In relation to map layout only the Display Attribute is relevant. The Display attribute will be added to the map if the Text style -> Visible is set to True in the Feature layer properties.

Map Layout options (raster data)

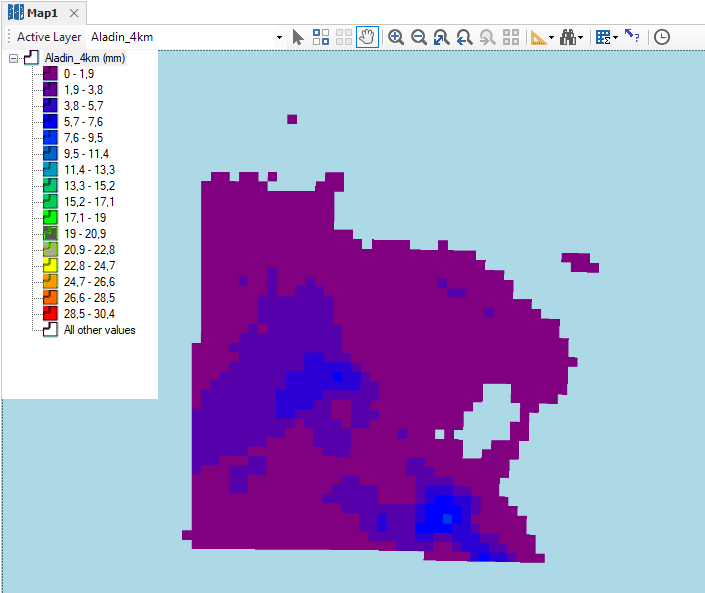

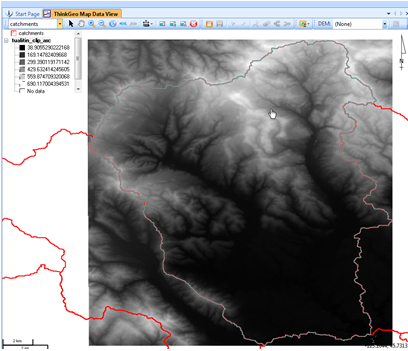

Grid type rasters are displayed using a value ranges fill based on the value of the raster pixels. Image rasters are automatically displayed using the color values for each pixel.

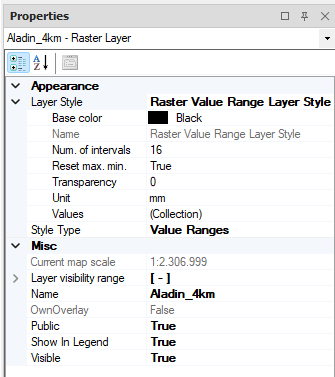

You can modify the colors and value range used to display grid type rasters or applying a new symbology template. Image rasters cannot be modified. To modify a grid type raster, click on the layer name in the legend.

By default the MIKE Zero (16 color) default template is applied to raster layers. You can quickly apply an alternative symbology template from the context of the layer.

Finally, you can set the transparency of the raster so that you can view other rasters "underneath" the top layer raster.

Mesh from Mesh database and Cloud Mesh storage can be add to map only using tool, extracting one time step or statistic and create feature class from it.

Mesh from Dfsu Mesh provider can be taken directly to the map as temporal element. In this case the same symbology as for raster is used.

Layer context menu

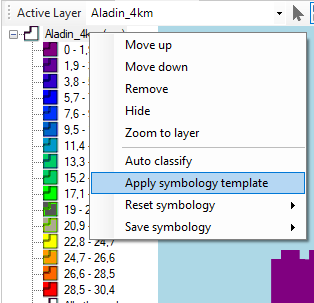

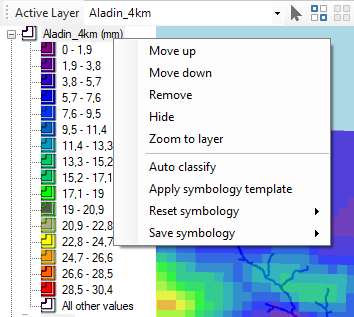

Right clicking a raster layer will show the context menu of the layer, providing options for the raster layer.

Move up

Move the layer up in the order of layers, to get the layer on top of other layers.

Move down

Move the layer down in the order of layers, to get the layer below of other layers.

Remove

Remove the layer form the map.

Hide

Hide the layer so that it is not shown on the map, but keep it in the legend.

Auto classify

Update symbology ranges to nice round number ranges.

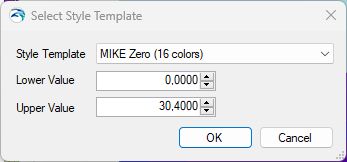

Apply symbology template

Apply a symbology template to value ranges style layers, from a list of predefined symbology templates.

• Style template
  Select the template from the dropdown list.
• Lower value
  Specify the lower value of the value range. By default the lowest value in the raster layer is used.
• Upper value
  Specify the upper value of the value range. By default the highest value in the raster layer is used.

Note

Note that Apply symbology template is available from MIKE OPERATIONS 2025.

Reset symbology

Resets a saved symbology.

• Private
  Reset the symbology of the selected raster or mesh.
• Workspace default
  Reset the symbology of the entire workspace.

Save symbology

Saves current symbology of the layer.

• Private
  Save for the selected raster or mesh only.
• Workspace default
  Saves symbology for the entire workspace, so that all rasters use the symbology.

Selecting Features

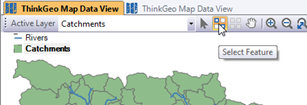

Click Select features in the toolbar.

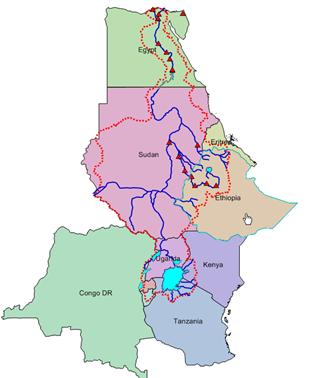

Select features by clicking on the map. Note that only features on the active layer can be selected (here Ethiopia is selected).

Multiple features can be selected by holding Shift key when clicking on features or by dragging the mouse while clicking for draw a rectangle. All features intersecting the rectangle will be selected.

Selecting features using spatial query tools

Different spatial query tools are available. The spatial query menu entry is enabled if one or more features have been selected.

All spatial query tools require that a "selection layer" is defined. The selection layer contains features to be selected using a spatial query. E.g. a query could be find dams located within Ethiopia.

This query would require:

1. The feature Ethiopia is selected in the feature class Countries-
2. The feature class Dams is used as selection layer.

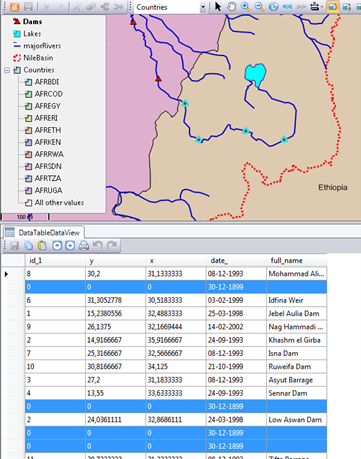

The result would be as illustrated in the graphics.

If the attribute data table is open during a spatial query the selected features will be highlighted in the table view as well as on the map.

A number of different spatial queries are available.

Selecting features by querying by Attributes

To query features by attributes, start by setting the active layer.

The attribute query tool is found in the Query drop-down list.

Example 1:

This query selects all features where attribute name1_ starts with the letter E.

Example 2:

This query selects all features with attribute area between 100,000 and 400,000.

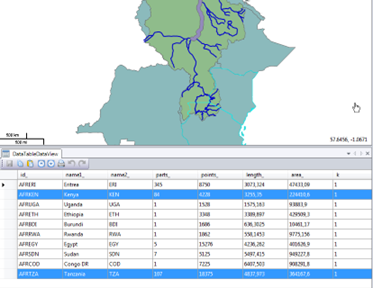

The result of the above query on a specific feature class is illustrated to the right.

Note that map view and data table are synchronized.

Note that the two queries in Example 1 and Example 2 could be combined in one joint query.

Saving Selected features in a new feature class

If individual features have been selected in the map, either using the selection tool or using spatial or attribute query tools, the selected features may be saved in a new feature class.

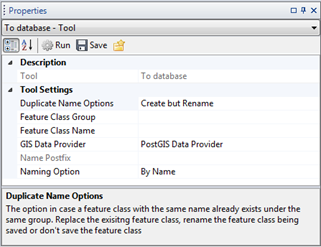

Use the To database tool to save the selected features to a new feature class.

See To database tool for further details.

Saving raster data to database

If you create a new raster using a tool such as the raster interpolation tools (see GIS Tools for vector data processing below), you can save this to the database.

First, select the raster layer you created by clicking on its name in the legend.

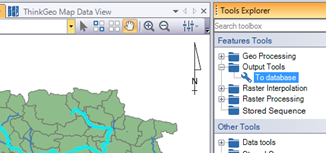

Then, select and run the To Database tool in the Tools Explorer.

This will permanently save the raster to the raster database.

Zonal statistics tool strip

The zonal statistics tools allow you to calculate basic statistics about the grid cell values in a raster within a specific area.

There are two options to define the area, you can define the area by drawing a polygon on the screen, or you can select a feature.

To calculate zonal statistics, the raster layer must be selected in the legend.

When selecting Zonal Statistics by Polygon, draw the polygon on the screen over the raster by clicking. To finish the polygon, double-click.

To calculate statistics within a polygon feature, the feature layer you want to select from must be the active layer, and the raster layer must be selected in the legend.

Click on the feature you want to calculate statistics for.

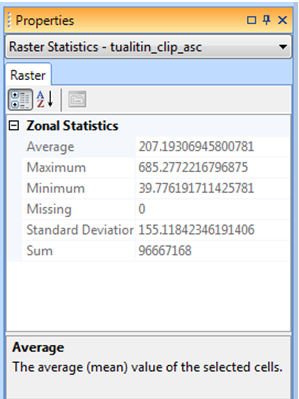

The zonal statistics will be displayed in the Properties dialog.

Map favorites

Add map to favorites

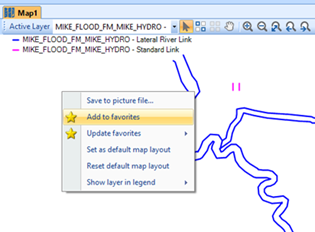

Add a map to Favorite by selecting the Add to favorite right-click menu.

All layout settings and layers are stored with a favorite.

The map favorite will now appear in the Favorite manager where it can be renamed and organized in groups.

Update favorites

Update a chart favorite by selecting the Update favorites right-click menu.

It will list all the existing map favorites.

Pick from the list and the selected map favorite will be updated with current map layer details.
